Description

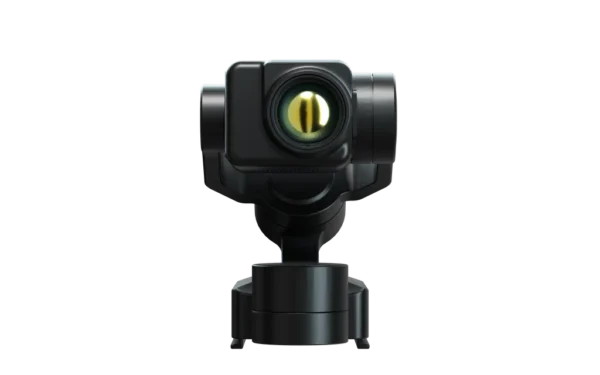

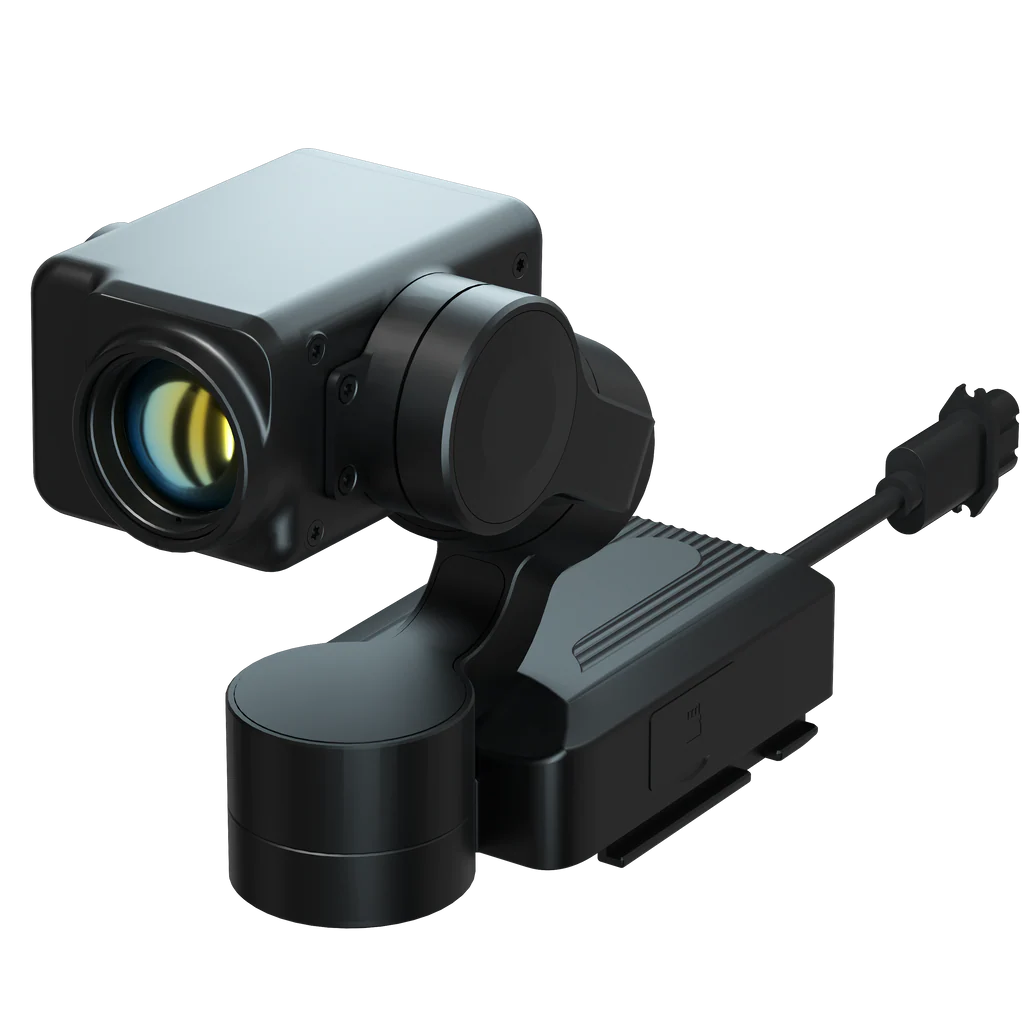

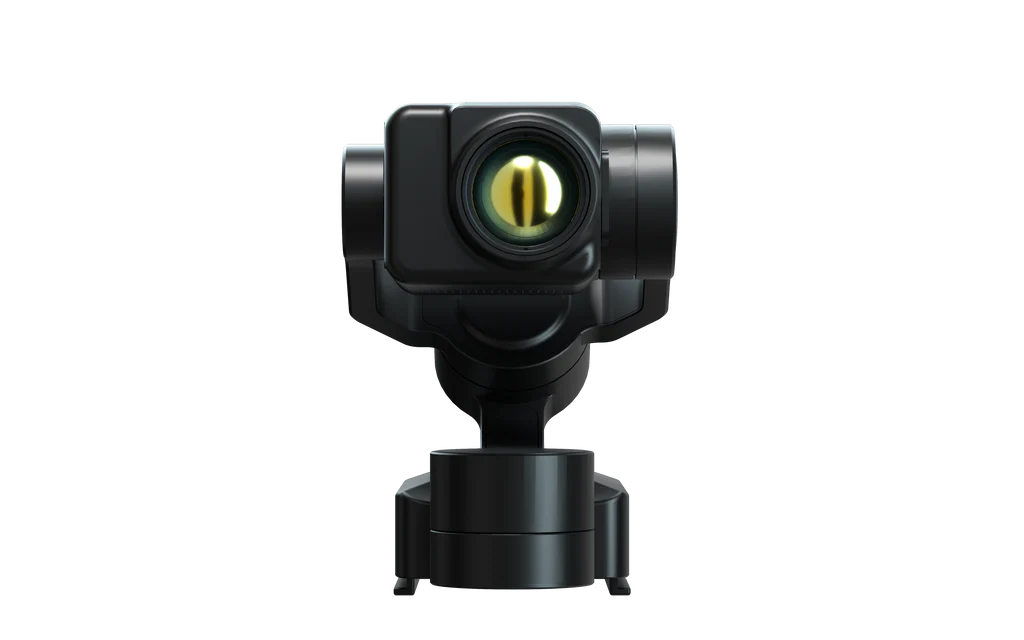

CZI IR3 Infrared Zoom Spotlight( for DJI Matrice 30 Series)

The CZI IR3 Infrared Zoom Spotlight for DJI Matrice 30 Series is a high-performance infrared illumination system designed to elevate your drone’s capabilities. Equipped with a 4 W VCSEL laser, 35× optical zoom, and a precision 3-axis gimbal, this spotlight empowers professionals—public safety, search & rescue, surveillance, and industrial inspection—with covert, long-range infrared lighting.

1. What Is the CZI IR3 Infrared Zoom Spotlight?

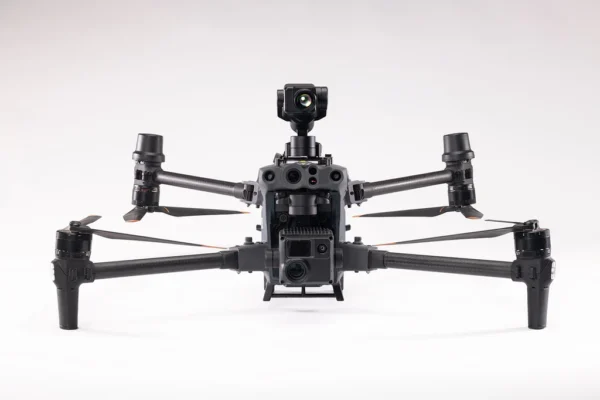

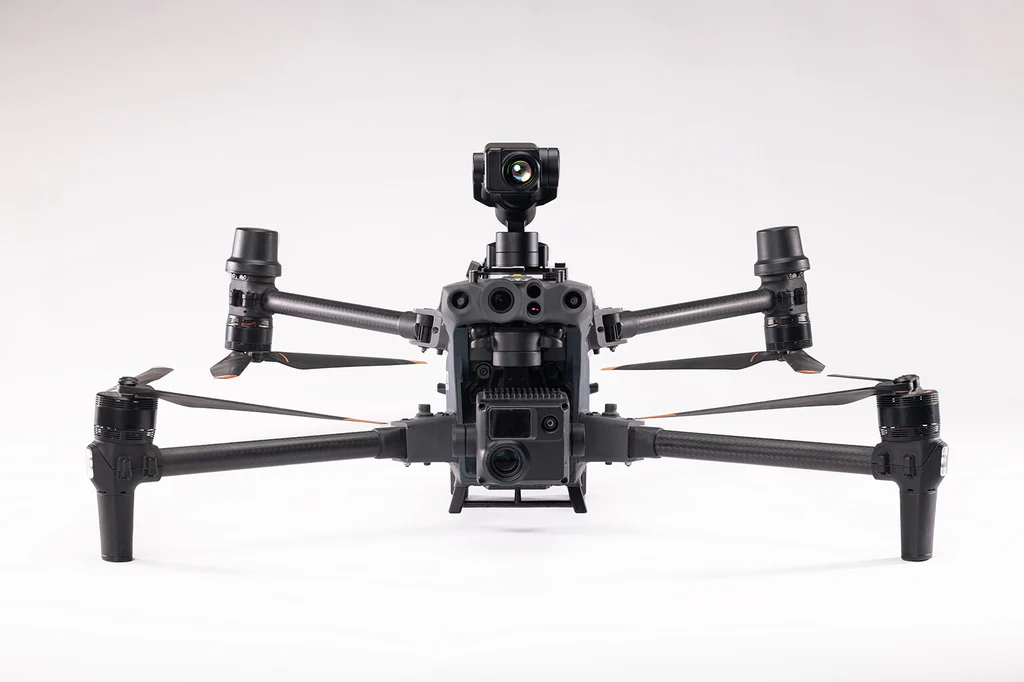

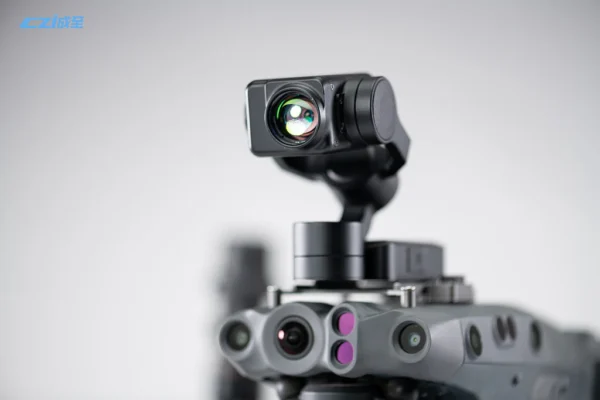

The CZI IR3 Infrared Zoom Spotlight for DJI Matrice 30 Series is a compact yet powerful infrared payload built specifically for Matrice 30 and M30T drones. Weighing just ~208 g (excluding bracket), the IR3 delivers adjustable beam angles from narrow spotlight to wide floodlight, enabling operators to illuminate areas silently and without visible light—perfect for discreet nighttime missions.

---

2. Core Features & Technical Specifications

Here’s a breakdown of what makes the CZI IR3 Infrared Zoom Spotlight for DJI Matrice 30 Series exceptional:

🔦 4 W VCSEL Laser, 300 m+ Infrared Range

Delivers high-intensity illumination using an 850 ± 10 nm laser for effective infrared fill beyond 300 meters

🔍 35× Optical Zoom & Adjustable Beam

Seamlessly zoom from a tight 2° spotlight (≥ 800 m range, 28 m diameter) to a 70° floodlight (≥ 80 m coverage, 112 m diameter) in under 2 seconds

🤖 Precision 3-Axis Gimbal

Supports tilting from –80° to +45° and ±90° panning, with stabilization accurate to 0.01°, ensuring ultra-stable beams on targets

⚙️ Compact & Lightweight

At just 208 ± 5 g, the spotlight minimizes payload load while delivering maximum performance

📱 Integrated DJI Pilot 2 App Control

Connects through Matrice’s E-port quick-release bracket. Use the DJI app to adjust on/off, beam angle, and brightness

🛡 Laser Safety & Standards

Class 3B laser, IEC/FDA certified. Minimum safety distance of 15 m at narrowest beam

---

3. Why Choose the CZI IR3 Infrared Zoom Spotlight?

✅ Covert Night-Operations

Illuminate with infrared only—no visible light—enabling discreet surveillance, covert operations, or wildlife monitoring without alerting subjects.

✅ Long-Range Precision

Whether zooming in to identify objects hundreds of meters away or casting a wide flood for search missions, the spotlight adapts instantly mid-flight.

✅ App-Controlled Flexibility

No need for extra hardware—adjust zoom, angle, brightness, and on/off via DJI Pilot 2 in real time.

✅ Industrial-Grade Design

Lightweight, rugged, and stable with 3-axis stabilization for vibration-resistant performance.

✅ Safety-Assured

Compliant with laser safety standards; integrated cutoffs prevent accidental exposure.

---

4. In-Depth Specs Summary

---

5. Setup & Operation Guide

📦 Unboxing & Accessories

Includes IR3 unit and quick-release bracket. Bracket integrates into Matrice’s E-port and links to the drone’s power/data lines.

🧰 Mounting Steps

1. Power down the drone.

2. Attach IR3 bracket to E-port and tighten.

3. Connect spotlight to power/data port.

4. Restart drone, launch DJI Pilot 2 — System auto-detects IR3 spotlight.

📲 Operation via DJI App

• On/off toggle.

• Zoom control from 2°–70°.

• Brightness adjustment.

• Beam follows gimbal’s pan/tilt.

🛡 Safety Compliance

The app displays safe distance warnings. Ensure ≥ 15 m from operators or bystanders. Note: Laser is invisible to the naked eye.

---

6. Use Cases and Real-World Applications

• 🛑 Law Enforcement & Surveillance
  Conduct nighttime patrols with covert illumination—monitor suspects discreetly.

• 🆘 Search & Rescue
  Illuminate large areas at night; zoom in on heat-sensor hot spots for subject rescue.

• 🏞 Wildlife and Conservation
  Track nocturnal animals without disturbing them or exposing bright white light.

• 🏗 Nighttime Infrastructure Inspection
  Inspect remote structures like towers or pipelines with infrared precision.

• 🎥 Secret or Tactical Photography
  Film at night undetected or light scenes for thermal-imaging cameras.

---

7. Comparative Insights

Compared to generic LED pods or visible-light spotlights:

• Infrared-only beam: stealth, non-disruptive.

• Adjustable angle + zoom vs fixed spread.

• Higher power, longer IR range compared with low-end IR lights.

• Lightweight, DJI-native vs heavy third-party clamped lights.

---

8. Maintenance & Care

• Keep lens clean with studio-grade wipes.

• Recheck bracket screws after each flight.

• Monitor firmware updates via DJI Pilot 2.

• Seal checks to maintain waterproofing.

• Storage: store in dry, dust-free case when not in use.

---

9. User Feedback

“We used the IR3 on night border patrol—zoom into a farm field and see footprints at 200 m. Very quiet and powerful.”
— Drone Patrol Unit

“Smooth beam zoom and Pan/Tilt follow the gimbal – perfect for powerline inspection at night.”
— Industrial Drone Pilot

---

10. FAQs

Q: Does it work on non-Matrice 30 drones?
A: No—it’s built for the Matrice 30 Series with E-port integration.

Q: What’s the visible light spot?
A: It’s pure infrared—no visible beam, so it won’t disrupt or alert.

Q: Safe for wildlife?
A: Yes—no visible flash. However, avoid close-range exposure to living eyes.

Q: How fast is the zoom?
A: Under 2 seconds—quick for in-flight adjustments .

---

11. Purchasing & Availability

• Street Price: ~US $2,600–3,100 .

• Authorized Dealers: Adorama, RCDrone, Global Drone HQ, Enterprise UAV.

• Local Market Tip (Cameroon): Expect ~1,800,000–2,200,000 XAF plus import duties.

---

12. Final Takeaway

The CZI IR3 Infrared Zoom Spotlight for DJI Matrice 30 Series is an advanced, stealthy infrared payload designed to enhance nighttime drone operations. With laser-class output, adjustable angle and zoom, app-controlled precision, and low weight, it’s the go-to choice for professionals requiring covert, long-range illumination. From rescue missions to industrial inspections, the IR3 shines—literally—while keeping your presence discreet, safe, and efficient.

---

✅ Summary at a Glance

• 4 W VCSEL laser @ 850 nm, 300 m+ range

• 2°–70° adjustable beam via 35× zoom

• 3-axis stabilized gimbal with ±90° pan & –80° to +45° tilt

• ~208 g weight, DJI Pilot 2 control

• Class 3B, 15 m minimum infrared safety

• Starts and switches in ≤ 2 s
