XAG P100 PRO Revocast 3

Description

XAG P100 PRO Revocast 3

Optimized dispersal system for bottom sowing

The new hopper and feeder design completely changes the drone distribution system and significantly improves distribution efficiency and accuracy.

• In-line counter-rotating centrifugal discs:   Strong ejection, more precise dispersion.
• Smart dosing screw:   Changes the screw according to the size of the granules to be distributed
• 80-litre tank for 50 kg of seeds:   Radar detects residual material and prevents the auger from becoming inactive and disappearing
• High-speed flight:   Flight speed up to 13.8 m/s
• The dispersion width can be precisely adjusted:   The dispersion width only needs to be adjusted to the flight altitude
• Easy cleaning:   The screw can be quickly replaced and easily cleaned.

Introduction to the XAG P100 PRO with RevoCast 3

The XAG P100 PRO is a state-of-the-art agricultural drone engineered to meet the evolving demands of precision farming. When paired with the RevoCast 3 spreading system, it offers unparalleled efficiency in granular applications, such as fertilization and seeding.

Design and Build Quality

Structural Integrity

Crafted from a robust combination of glass and carbon fiber composites, the P100 PRO ensures durability and resilience in various field conditions. Its foldable design enhances portability, making transportation and storage convenient for operators.

Payload Capacity

The drone boasts a maximum payload capacity of 50 kg, accommodating the RevoCast 3 system’s 80L granule container. This substantial capacity allows for extended operational periods without frequent reloading.

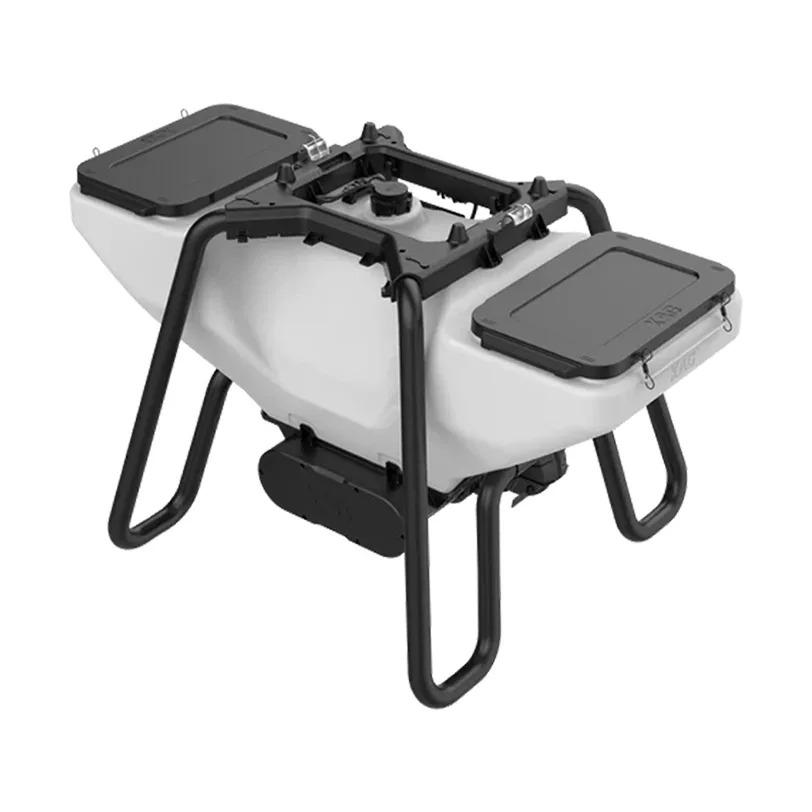

RevoCast 3 Spreading System

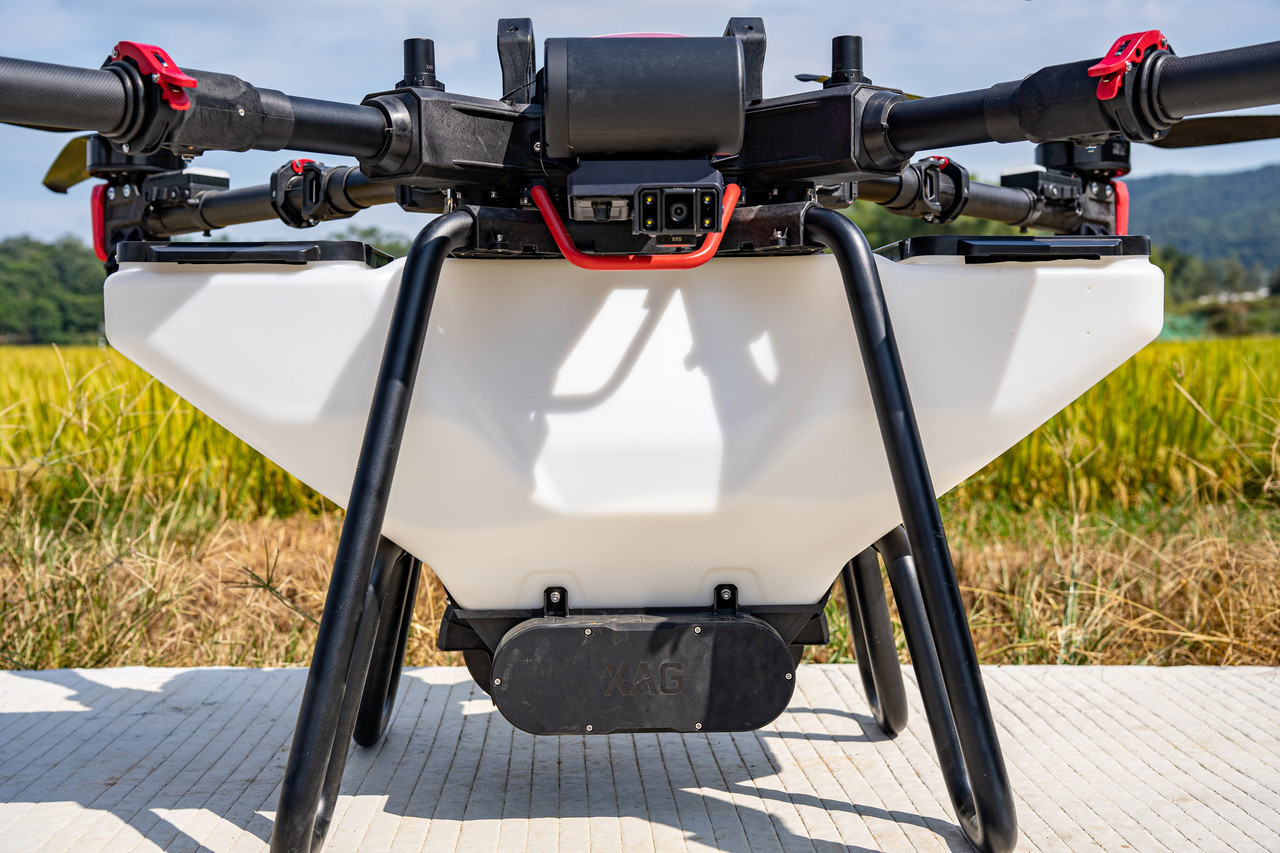

Granule Container

The 80L granule container is designed for easy loading and unloading, facilitating quick transitions between tasks. Its capacity ensures that large areas can be covered efficiently in a single flight.

Smart Screw Feeders

Equipped with intelligent screw feeders, the RevoCast 3 system automatically adjusts the discharge speed based on flight speed, ensuring uniform distribution of granules. This feature minimizes overlaps and gaps, optimizing resource usage.

Centrifugal Spreading Discs

The system utilizes centrifugal spreading discs that provide a consistent spread pattern. The spread width can be adjusted between 3 to 7 meters, depending on flight altitude and granule characteristics.

Real-Time Volume Sensing

An integrated non-contact volume sensor monitors the remaining granule levels in real-time. This technology prevents the screw feeders from running dry, ensuring continuous operation and preventing potential damage.

Performance and Efficiency

Maximum Spread Rate

The RevoCast 3 system achieves a maximum spread rate of 150 kg/min, significantly enhancing operational efficiency compared to previous models. This high throughput is particularly beneficial for large-scale applications.

Flight Speed and Coverage

With a maximum flight speed of 13.8 m/s, the P100 PRO can cover extensive areas swiftly. The drone’s efficiency allows for the application of up to 1300 kg of fertilizer per hour, depending on field conditions.

Adaptability to Granule Size

The RevoCast 3 system is compatible with granules ranging from 1 to 6 mm in size. Its adaptable design ensures consistent performance across various granular materials, including urea, compound fertilizers, and seeds.

Advanced Features

RTK Positioning

The P100 PRO is equipped with Real-Time Kinematic (RTK) positioning technology, providing centimeter-level accuracy. This precision is crucial for tasks that require exact placement of materials.

Obstacle Avoidance

Advanced radar systems enable the drone to detect and avoid obstacles in real-time, ensuring safe operations even in complex terrains.

Variable-Rate Application

The intelligent control system supports variable-rate applications, allowing for tailored distribution of materials based on specific field requirements.

Applications in Agriculture

Fertilization

The RevoCast 3 system’s high spread rate and uniform distribution make it ideal for large-scale fertilization tasks, enhancing crop yield and soil health.

Seeding

The adaptability to various granule sizes allows the P100 PRO to efficiently perform seeding operations, ensuring optimal plant growth.

Soil Amendment

The precise application capabilities are beneficial for soil amendment tasks, improving soil structure and fertility.

Maintenance and Support

Routine Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of the P100 PRO and RevoCast 3 system. This includes cleaning the granule container and screw feeders to prevent clogging.

Technical Support

XAG provides comprehensive support services, including software updates, troubleshooting, and operator training, ensuring users can maximize the drone’s capabilities.

Conclusion

The XAG P100 PRO equipped with the RevoCast 3 spreading system represents a significant advancement in agricultural drone technology. Its robust design, high payload capacity, and advanced features make it a valuable tool for modern precision farming, enhancing efficiency and productivity in various agricultural applications.
