XAG P100

Description

XAG P100

The 2022 Jifei P100 agricultural drone adopts a split platform design, integrating intelligent mapping, efficient sowing and precise spraying, condensing powerful performance and reliable quality, and creating a new flagship of intelligent agriculture.

• Efficient spreading:  280 kg/pack battery cycle.
• Precise spraying:  60 – 400 micron centrifugal nebulizer.
• Smart mapping:  81 ha in 13 minutes.
• Fully autonomous flight:  One-key operation of the app and RTK navigation.
• Split Platform:  Quick change for easy handling.
• Safe and reliable:  4D radar, intelligent obstacle avoidance.

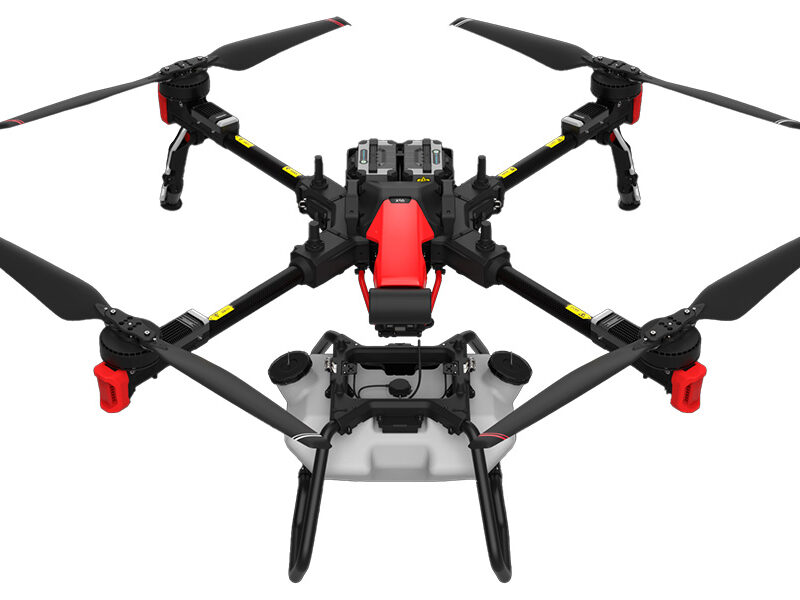

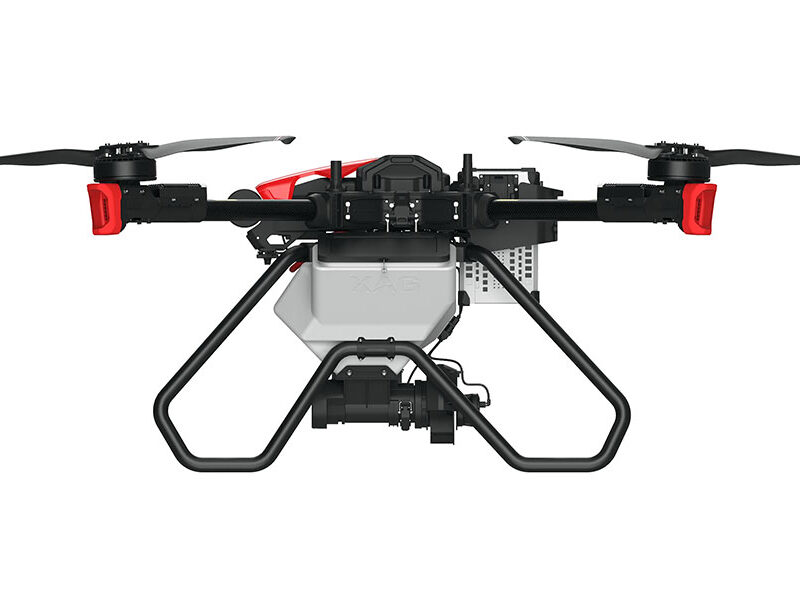

Split platform, flexible transition

The flight platform is separate from the mission system, reducing handling weight  and  facilitating refueling, transfer, transport, and maintenance.

• Integrated flight platform design, sturdy and durable.
• Double safety buckles and three-proof plugs for quick disassembly and assembly
• IPX6K dustproof and waterproof, machine washable



Incisive and precise

Eight years of intelligent centrifugal atomization technology combined with a new generation of peristaltic pumps and intelligent shut-off valves has achieved a dual evolution of flow and effect, and precise atomization is a step further.

• A new generation of peristaltic pumps:  Maximum flow rate up to 12 l/min
• Intelligent centrifugal atomization:  Atomization range of 60-400 microns
• Efficient plant protection:  Maximum spray width of 10 m
• Nozzle shut-off valve:  No dripping during work shifts and transport
• Quick release mechanism:  Easy to disassemble, transport and maintain
• 40L Smart Tank:  Real-time dose perception



Supports AI prescription map operation

Precise transmission, smooth diffusion

The newly designed seed tray and feeder completely redesign the drone distribution method, greatly improving distribution efficiency and accuracy.

• In-line opposed centrifugal discs:  Strong wind resistance, more precise sowing.
• Intelligent screw feeder:  Change the auger according to the size of the particles to be spread. Precise, not fat.
• 50-liter tank:  Radar detects residual material and prevents drilling. Inactive and missing.
• High Speed ​​Fly:  Flight speed spread up to 13.8 m/s One set of batteries can complete up to 280 kg of fertilizer spreading.
• The transmission size is precisely adjustable:  The transmission size only needs to be adjusted by the flight height.
• Quick Release & Wash:  The auger can be replaced quickly for easy cleaning.

Easy mapping of farmland orchards, automatic generation of high-definition maps.

Quickly perform high-resolution surveying and mapping tasks for farmland orchards, and route planning with a single click to comprehensively improve the operational efficiency of agricultural drones.

• Fast high definition mapping: Single topography and maximum mapping 81 ha
• Dual-link data transmission: Offline splicing, Wi-Fi fast transmission
• One-click sharing of plot data: Team collaboration made easy

Flexibility and flexibility around obstacles.

The 4D imaging radar works perfectly with the ground imitation radar module, fully perceives obstacles and the surrounding environment, accurately predicts the position, distance, movement direction and speed of all obstacles within a range of 40 meters, quickly and accurately avoids obstacles, and protects UAVs in all directions Fly safely.

Perspective view of the PSL pilot

Field conditions are clear at a glance, and the safety of flight operations is guaranteed.

Abundant, efficient and economic power.

A high-efficiency all-in-one charging solution with a separate generator and charger design supports direct grid charging and saves operating costs.

 Extreme Fly CM2700

Charger

• Supports single-channel supercharging, dual-channel parallel charging
• Multiple load protection functions
• Supports 12V/8A/100W output

 Jifei B13960S Smart Supercharged Battery

• Nominal capacity 20Ah (962Wh)
• Water-cooled cargo
• 8 minutes for a single battery / 13  minutes for charging dual batteries

Extreme Fly GC9000 –  Mobile Charging Station

• Rated load power 6kw, support. Bidirectional charging
• Separate generator and charger design to  support direct grid charging

 Extreme Fly® CM27000 Charger

• Supports single-channel supercharging, dual-channel parallel charging
• Multiple load protection functions
• Supports 12V/8A/100W output

Two interactive modes, intelligent control experience

The drone can be connected directly to the drone via the Jifei Agricultural Service app to perform refined, fully autonomous farming operations. It can also be equipped with a one-handed remote control for remote farmland inspection and monitoring.
Jifei Agricultural Service 3.0

• Support breakpoint to continue flying:  Continued work on the plot.
• Dual-link communication: More stable work
• Sharing plot data:  Team collaboration made easier
• Access to human customer service:  Get help anytime, anywhere
• Compatible with Android and iOS
• Support for multiple languages

 Extreme FLY ACS3 One-Handed Remote Control

• Wi-Fi (2.4 GHz) Wireless Communication:  Create a Local Area Network
• Equipped with RTK module:  Perform mapping function
• Supports dual card dual standby, weak network bridging
• Simple control and quick start

Cloud data storage  ,  one-click generation and sharing of work reports

Once the operation is completed, various operation data is automatically stored in the cloud, and operation reports can be generated with a single click. WeChat sharing is supported, allowing farmers to easily understand the operation status and build trust.

Building a smart agricultural ecology

Open a new era of unmanned farmland management

• Comprehensive perception of farmland information
• AI-assisted intelligent decision-making
• Automate precision work

Thousands of miles away, connected by a screen

Jifei has connected to China’s civil aviation UAV cloud system, real-name authentication and real-time monitoring of the Jifei cloud system ,  and  support for electronic
fencing, self-inspection of the no-fly zone and remote blocking, full visibility of operation information, and full tracking of flight records.

1. RTK Base Station

Purpose:
Provides real-time centimeter-level positioning to the drone, ensuring precise navigation and accurate application of inputs.​

Features:

• Centimeter-Level Positioning: Delivers differential data for mobile devices via radio within a 2-3 km radius, ensuring high stability and short delay in signal transmission. ​

• Compatibility: Supports multiple XAG products, including agricultural drones, remote sensing drones, unmanned ground robots, and the XAG AutoPilot Console.​

• Durability: IP65-rated protection makes it waterproof and dust-resistant, ready to operate effectively under various harsh conditions.

Benefits:
Enhances the drone’s ability to perform fully autonomous flight missions with high accuracy, reducing overlap and minimizing input wastage.​

---

2. Intelligent SuperCharge Battery (B13960S)

Purpose:
Provides reliable power to the drone, supporting extended flight times and efficient operations.​

Features:

• Large Capacity: Offers a 962 Wh capacity, ensuring extended operational time per charge.​

• Rapid Charging: Fully charges in approximately 11 minutes using the GC4000+ Auto SuperCharge Station, thanks to its water-cooling technology. ​

• Intelligent Management: Equipped with the XBMS Intelligent Battery Management System for self-balancing of battery cells and enhanced safety.​

Benefits:
Enables the drone to operate efficiently for longer periods, reducing downtime and increasing productivity in the field.​

---

3. GC4000+ Auto SuperCharge Station

Purpose:
Facilitates rapid charging of multiple batteries, ensuring continuous drone operations.​

Features:

• High Power Output: Delivers 3400 W rated power, capable of fully charging up to 25 batteries with a 15 L full tank of petrol. ​

• Portability: Weighs only 31.5 kg, making it easy to transport to various field locations.​

• Efficient Fuel Consumption: Features a variable frequency generator with ultra-low fuel consumption of 0.6 L/KWh.

Benefits:
Ensures that batteries are charged quickly and efficiently, minimizing downtime and maximizing operational efficiency.​

---

4. XAG One App

Purpose:
Provides a user-friendly interface for planning and monitoring drone missions.​

Features:

• Multi-Platform Support: Compatible with both Android and iOS devices, allowing for flexible operation.​

• Autonomous Flight Planning: Enables users to plan flight routes based on field maps, battery levels, and input volumes.​

• Data Sharing: Allows for sharing of field data among team members, enhancing collaboration and efficiency.​

Benefits:
Simplifies the operation of the drone, making it accessible to users with varying levels of technical expertise.​

---

5. Handheld Control Stick (ACS2)

Purpose:
Offers manual control of the drone, ideal for small field operations or areas with obstacles.​

Features:

• RTK Mapping: Equipped with RTK capabilities for accurate mapping and mission planning.​

• Manual Control: Provides button-based manual control for precise maneuvering in complex terrains.​

• Flight Path Upload: Supports uploading flight paths to smartphones for easy mission execution.​

Benefits:
Provides flexibility in drone operations, allowing for manual intervention when necessary.​

---

6. RevoSpray and RevoCast Systems

Purpose:
Enhance the drone’s spraying and spreading capabilities, improving efficiency and coverage.​

Features:

• RevoSpray: Utilizes dual peristaltic pumps with a maximum flow rate of 22 L/min, delivering precise spraying with droplet sizes ranging from 60 to 400 μm. ​

• RevoCast: Features a vertical centrifugal spreading disc and smart screw feeder, capable of spreading up to 150 kg/min, suitable for various granule sizes.​

Benefits:
Improves the uniformity and efficiency of spraying and spreading operations, ensuring optimal application of inputs.​

---

7. Dynamic Radar and Terrain Radar Module

Purpose:
Enhances the drone’s ability to navigate complex terrains and avoid obstacles.​

Features:

• Dynamic Radar: Detects obstacles within 40 meters ahead and above, allowing for real-time avoidance.

• Terrain Radar Module: Provides precision detection of downward terrain, ensuring stable flight in varying conditions.

Benefits:
Increases flight safety by enabling the drone to adapt to its environment and avoid potential hazards.​

---

Conclusion

XAG P100 Agricultural Drone – Advanced Precision Spraying & Spreading

The XAG P100 is a cutting-edge agricultural drone designed to revolutionize precision farming. With its advanced features and modular design, it offers efficient and effective solutions for crop protection and nutrient application.

---

Key Features

Modular Design for Versatility

• Separable Components:
  The XAG P100’s design allows for easy separation of the flying platform and task systems, facilitating convenient transportation and maintenance.

• Quick-Release Mechanism:
  Equipped with a quick-release spraying bar and granule container, the drone enables swift transitions between spraying and spreading tasks.

Precision Spraying System

• Smart Liquid Tank:
  The 40L smart liquid tank features real-time liquid level detection, ensuring consistent application rates.

• Advanced Atomization Technology:
  Utilizing centrifugal atomization, the drone achieves droplet sizes ranging from 60 to 400 μm, enhancing coverage and reducing drift.

• Nozzle Shutoff Valve:
  Prevents leakage during turns and transport, maintaining efficiency and minimizing waste.

Efficient Granule Spreading

• Granule Container:
  The 60L granule container is equipped with sensors to detect remaining granules, optimizing application rates.

• Vertical Centrifugal Spreading Disc:
  Designed to withstand strong winds, this disc ensures uniform distribution of granules across the field.

• Smart Screw Feeder:
  Adjustable to accommodate different granule sizes, providing precise and smooth spreading.

Advanced Navigation and Control

• RTK Centimeter-Level Positioning:
  The drone employs RTK technology for precise navigation, ensuring accurate application and reducing overlap.

• Dynamic Radar and Obstacle Avoidance:
  Integrated radar systems detect and avoid obstacles, enhancing safety during operations.

• Dual Control Options:
  Operate the drone via the XAG One App for fully autonomous missions or use the Handheld Control Stick for manual control in small fields.

Robust Power System

• Intelligent SuperCharge Battery:
  The 962 Wh battery offers rapid charging times and extended flight durations, supporting efficient operations.

• Auto SuperCharge Station:
  The GC4000+ station provides quick recharging capabilities, ensuring minimal downtime between missions.

---

Applications

The XAG P100 is suitable for a variety of agricultural applications, including:

• Crop Protection:
  Efficiently apply pesticides and fungicides to protect crops from pests and diseases.

• Nutrient Application:
  Precisely distribute fertilizers to promote healthy plant growth.

• Seed Spreading:
  Uniformly spread seeds across large areas to enhance germination rates.

---

Conclusion

The XAG P100 Agricultural Drone sets a new standard in precision farming. Its modular design, advanced spraying and spreading systems, and intelligent navigation capabilities make it an invaluable tool for modern agriculture. Whether you’re looking to improve efficiency, reduce labor costs, or enhance application accuracy, the XAG P100 offers comprehensive solutions to meet your needs.
