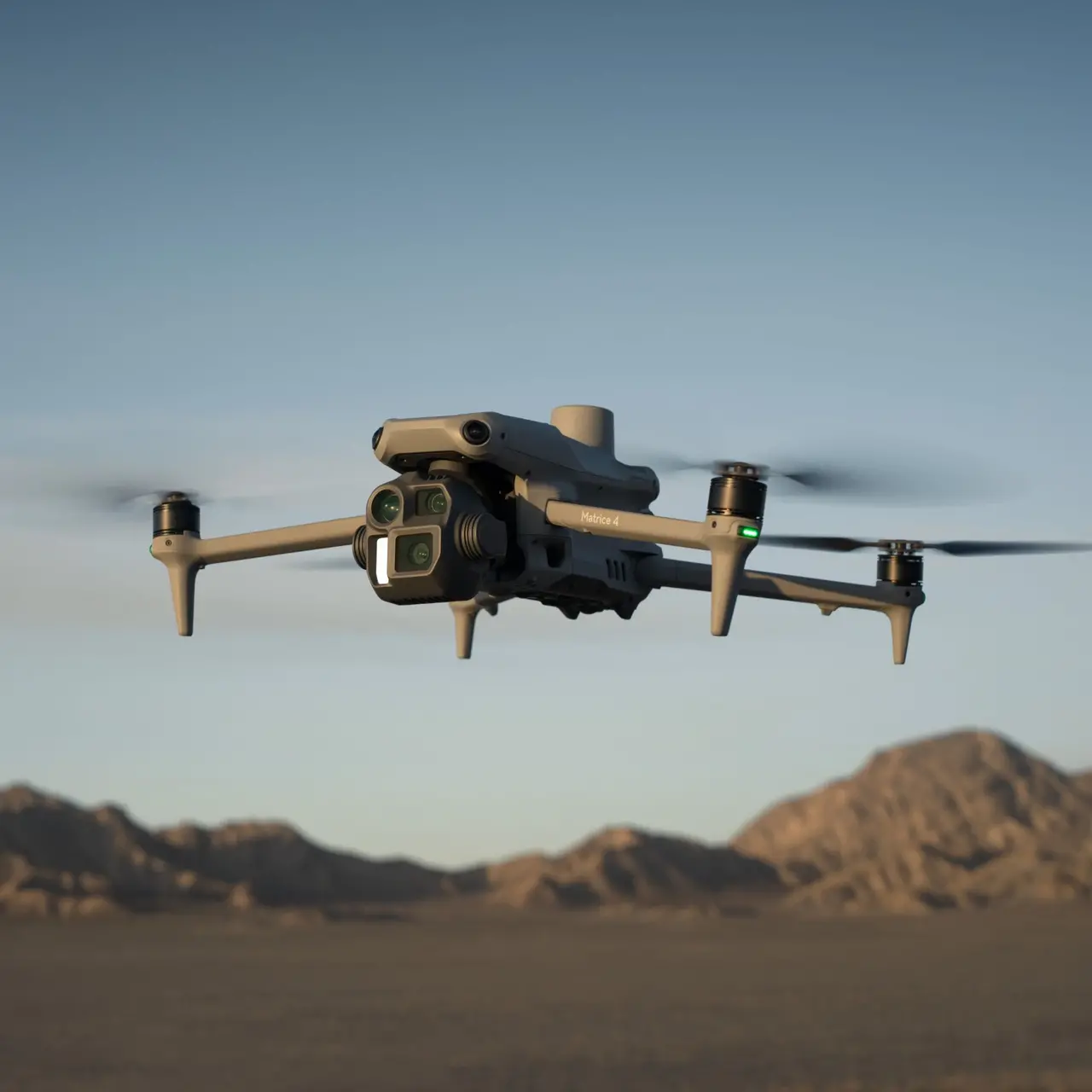

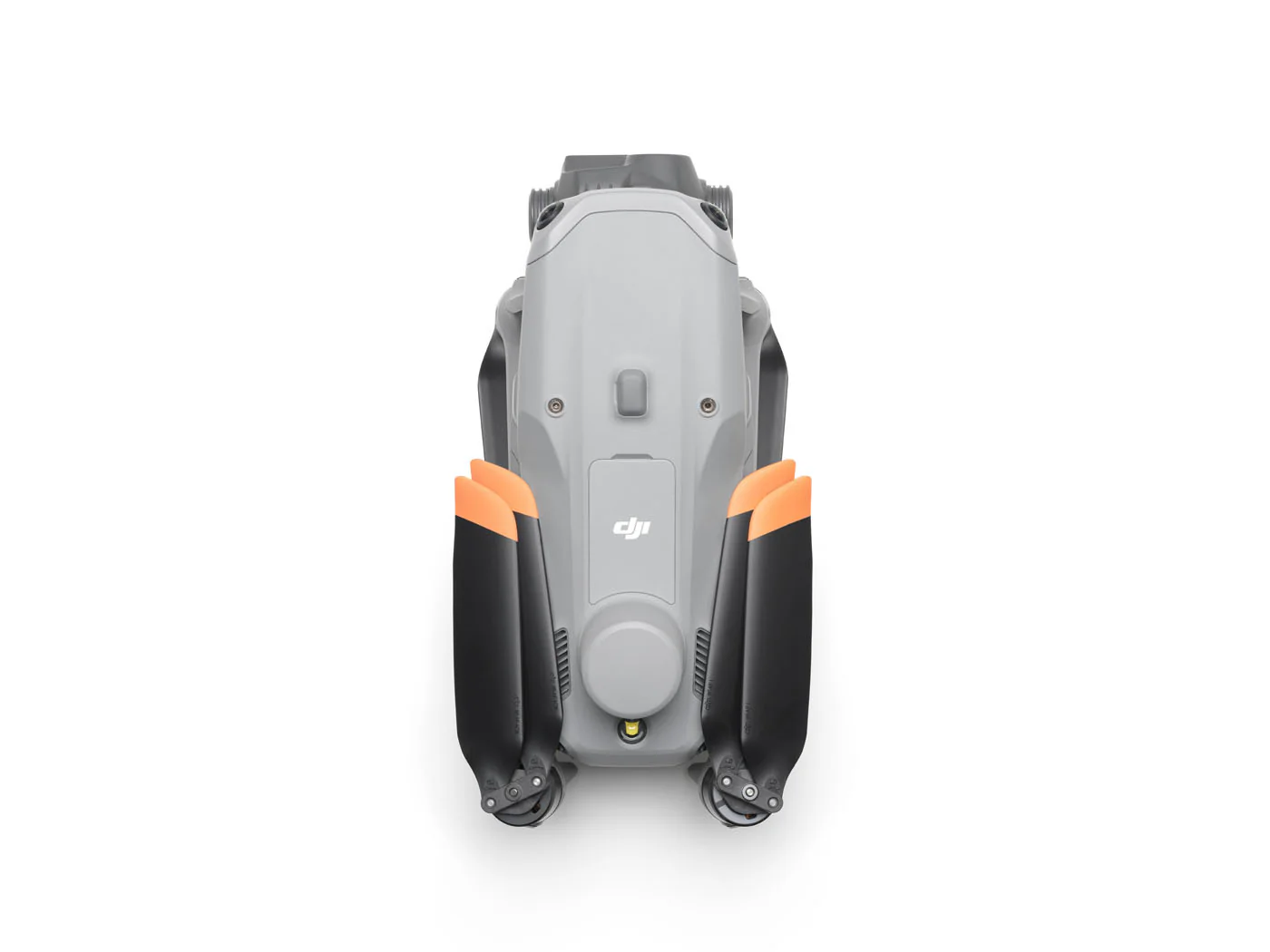

DJI Matrice 4E Plus Combo – Overview

The DJI Matrice 4E Plus Combo is a cutting-edge, enterprise-grade drone designed for industrial, commercial, and professional applications. Built to meet the demands of demanding missions, this powerful drone comes equipped with advanced imaging technology, including high-resolution cameras, and features designed for both indoor and outdoor operations. The Matrice 4E Plus Combo is ideal for a wide range of industries, including agriculture, infrastructure inspection, search and rescue, environmental monitoring, and surveying.

Key Features of the DJI Matrice 4E Plus Combo

1. High-Resolution 4K Camera:
   The DJI Matrice 4E Plus Combo is equipped with a high-quality 4K RGB camera, offering stunning visual clarity for industrial inspections, mapping, and surveying. This high-resolution camera is perfect for capturing detailed aerial imagery, enabling operators to perform accurate inspections and surveys.

2. Advanced Thermal Imaging:
   Featuring thermal imaging capabilities, the Matrice 4E Plus Combo can capture heat signatures, making it an essential tool for applications such as search and rescue, infrastructure inspections, and environmental monitoring. The thermal camera allows users to detect temperature variations, identify potential issues, and enhance decision-making processes in real-time.

3. Extended Flight Time:
   With the ability to fly for up to 40 minutes (depending on conditions and payload), the DJI Matrice 4E Plus Combo allows operators to cover more ground and complete longer missions without the need for frequent recharges. This extended flight time improves efficiency and productivity in the field.

4. Rugged and Durable Design:
   Designed to withstand tough environments, the Matrice 4E Plus features a rugged build that is capable of withstanding harsh weather conditions, including high winds and light rain. This durability ensures that the drone can operate effectively in both urban and remote locations, making it a reliable tool for a variety of industries.

5. Intelligent Flight Modes:
   The Matrice 4E Plus Combo offers a range of intelligent flight modes, including Waypoint Navigation, Follow Me, and Return-to-Home. These flight modes simplify mission planning, enhance flight stability, and improve the efficiency of operations, making it easier for both beginners and experienced operators to control the drone.

6. Dual-Battery System for Redundancy:
   The DJI Matrice 4E Plus Combo utilizes a dual-battery system, providing additional power and redundancy for longer, more efficient flights. The dual batteries work together to ensure a reliable power source throughout the mission, minimizing the risk of power failure during critical tasks.

7. Precise GNSS Capabilities:
   With high-precision Global Navigation Satellite System (GNSS) support, the Matrice 4E Plus ensures accurate positioning, even in challenging environments where GPS signals may be weak. This precision is critical for applications such as surveying, mapping, and inspections that require precise data.

8. Versatile Payload Options:
   The Matrice 4E Plus Combo is compatible with a wide range of payloads, such as additional cameras, sensors, and imaging equipment, allowing you to customize the drone for your specific needs. This flexibility makes the drone suitable for a broad spectrum of applications and industries.

Applications of the DJI Matrice 4E Plus Combo

• Industrial Inspections:
  The Matrice 4E Plus Combo is perfect for inspecting infrastructure such as power lines, wind turbines, bridges, and towers. The thermal and 4K cameras provide clear, detailed images that help detect faults, overheating, or damage, allowing for timely repairs and maintenance.

• Search and Rescue:
  Equipped with thermal imaging, the Matrice 4E Plus Combo is an invaluable tool for search and rescue missions. The ability to detect heat signatures in various environments helps first responders locate missing persons more efficiently, even in low visibility or challenging terrain.

• Agriculture:
  The Matrice 4E Plus Combo is ideal for precision agriculture. The thermal camera can detect variations in temperature and moisture levels, while the high-resolution RGB camera provides detailed visual data, enabling farmers to monitor crop health, irrigation systems, and soil conditions.

• Environmental Monitoring:
  With its dual camera system, the Matrice 4E Plus Combo is a great choice for environmental monitoring. Whether you’re assessing forest health, tracking wildlife, or surveying bodies of water, the drone provides both thermal and visual data to support conservation efforts and environmental research.

• Surveying and Mapping:
  The Matrice 4E Plus Combo is perfect for aerial surveying and mapping applications. The precise GNSS system ensures accurate data collection, while the 4K camera captures detailed visual information, allowing operators to create high-quality maps and 3D models.

Why Choose the DJI Matrice 4E Plus Combo?

• Reliability and Durability:
  Built for tough conditions, the Matrice 4E Plus Combo is reliable and durable, able to handle demanding commercial tasks and operate in challenging environments.

• Enhanced Imaging Capabilities:
  The combination of thermal imaging and 4K RGB camera allows for multi-dimensional data collection, making the drone a versatile tool for a wide range of industries.

• Longer Flight Time:
  The extended flight time of up to 40 minutes gives operators the ability to complete longer missions without needing frequent recharges, improving overall productivity and mission efficiency.

• Versatile Applications:
  Whether for industrial inspections, search and rescue, surveying, agriculture, or environmental monitoring, the Matrice 4E Plus Combo can be adapted to meet the specific needs of various industries, providing professionals with the tools they need to complete their tasks accurately and efficiently.

Conclusion

The DJI Matrice 4E Plus Combo is a powerful and versatile enterprise drone that delivers high-performance capabilities for commercial and industrial applications. With its dual-camera system, extended flight time, rugged design, and intelligent flight features, the Matrice 4E Plus Combo is designed to handle demanding missions in a variety of industries. Whether you need to conduct infrastructure inspections, search and rescue missions, agricultural monitoring, or environmental research, this drone provides the reliable performance and precision required to get the job done right.

Take a Closer Look

DJI Matrice 4 Series

Flagship Intelligent Multi-Sensor Compact Drone

Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded. The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.

Two Models, Countless Applications

DJI Matrice 4T

• Wide-Angle Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm
• Medium Tele Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
• Tele Camera 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
• Laser Range Finder Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)
• Infrared Thermal Camera Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode
• NIR Auxiliary Light FOV: 6°, Illumination Distance: 100 m

DJI Matrice 4E

• Wide-Angle Camera 4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter
• Medium Tele Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
• Tele Camera 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
• Laser Range Finder Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

Intelligent Operations With AI

The built-in AI model can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of AI application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.

Laser Range Finder, Precise Measurement

The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.

Observation Range Recording

DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.

Efficient Flight, Intelligent Operations

Activate cruise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights easier.

Excel In Low-Light Environments

The Matrice 4 series has received a significant night mode upgrade. Its Full-Color night vision now supports three modes and includes two levels of enhanced noise reduction. Equipped with an IR Cut Filter and NIR auxiliary light, it effortlessly overcomes the challenges of darkness, ensuring search and rescue subjects clearly visible. The Matrice 4 series has received a significant night mode upgrade. Its Full-Color night vision now supports three modes and includes two levels of enhanced noise reduction. Equipped with an IR Cut Filter and NIR auxiliary light, it effortlessly overcomes the challenges of darkness, ensuring search and rescue subjects clearly visible.

Crystal Clear Vision: Unveil the Details

Capture Every Detail at A Distance

Enhanced Medium Telephoto

The Matrice 4 series is equipped with a medium tele camera, expanding its capabilities for medium-range inspection tasks. During power line or bridge inspections, it can detect screws and cracks from a distance of 10 meters and clearly read instrument data at substations.

Super Resolution Telephoto

The tele camera of the Matrice 4 series has significantly improved clarity, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away. Additionally, the Matrice 4T is equipped with an IR-Cut Filter, ensuring 24/7 operations.

Foreground Stabilization for Telephoto Imagery

The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.

Electronic Dehazing, Clear as Ever

In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.

Electronic Dehazing, Clear as Ever

In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.

Precision Mapping, Time-Saving and Effortless

Rapid 0.5-Second Interval Shooting

The Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, enabling high-speed aerial surveying from multiple angles. Additionally, the mapping flight speed can reach up to 21 meters per second, significantly enhancing work efficiency.

Multi-Directional Capture, Efficiency Multiplied

The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, significantly enhancing the efficiency of small drone oblique photography.

3-Directional Ortho Capture

Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.

Smart 3D Capture, Precision Modeling

Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.

Safe Flight, Worry-Free Operation

Fusion Positioning, Safe Return-to-Home

The Matrice 4 series comes with an integrated DJI RTK module which supports the extended L5 frequency band and features GNSS+Vision Fusion Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds. Even without GNSS signals, it can complete the return-to-home process, effectively overcoming signal obstructions and interference commonly found in urban environments.

Intelligent Guidance, Unobstructed Flight

When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.

Achieve New Heights in Video Transmission

The O4 Enterprise video transmission system sets a new industry standard for challenging environments. Thanks to the 8-antenna system in the Matrice 4 Series and the high-gain antenna in the remote controller, you can achieve up to 25 kilometers in transmission range. Furthermore, the system improves image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series, ensuring more precise and stable images of route uploads and material downloads.
