Description

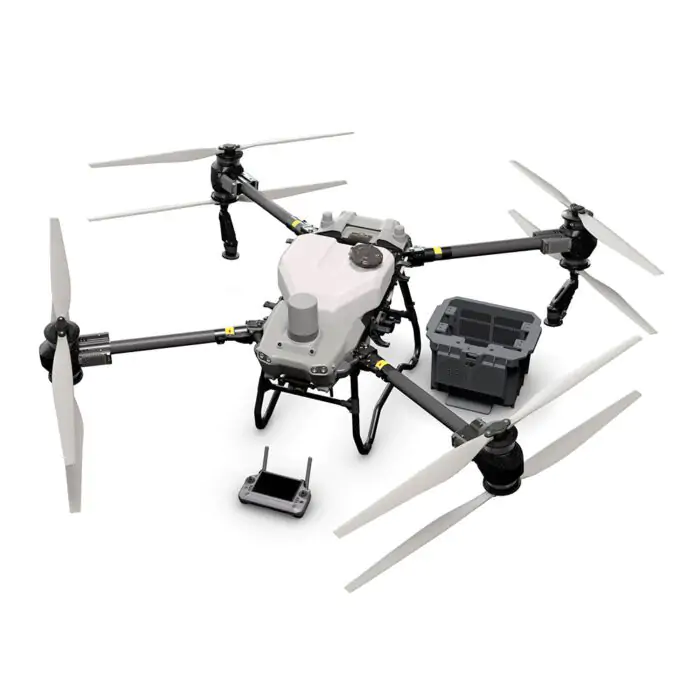

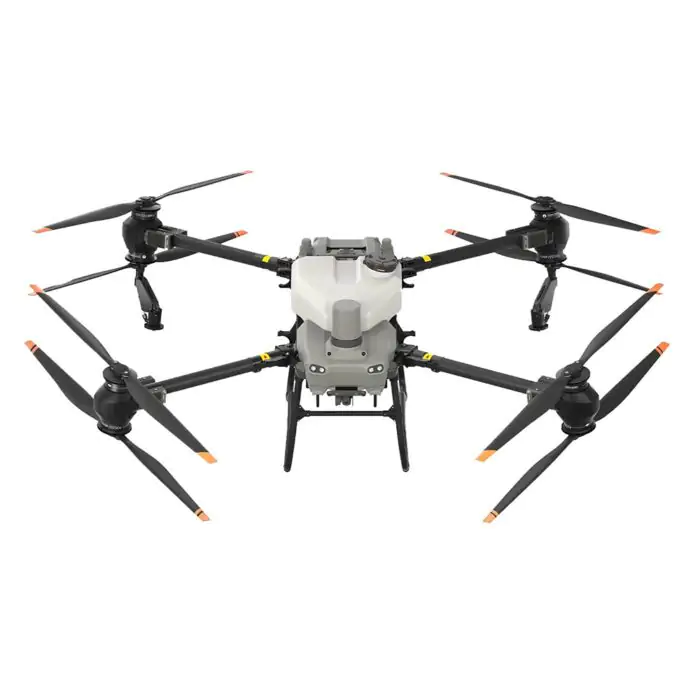

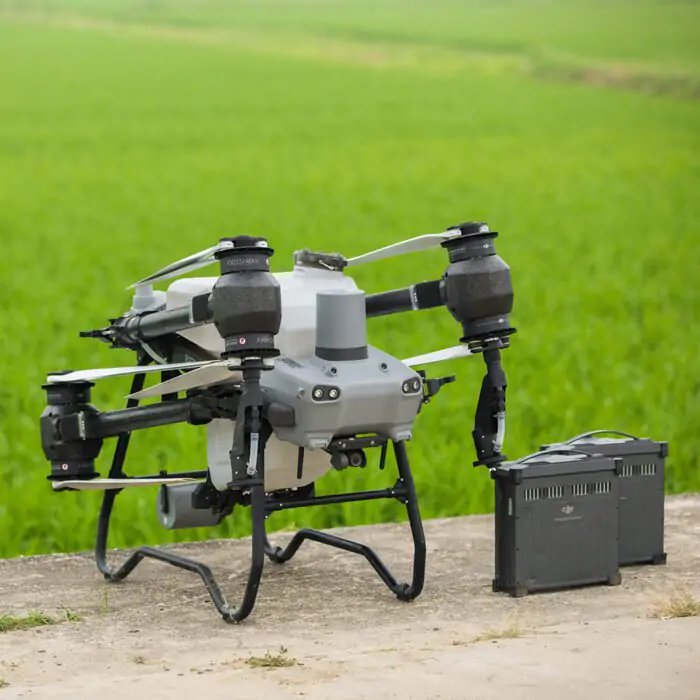

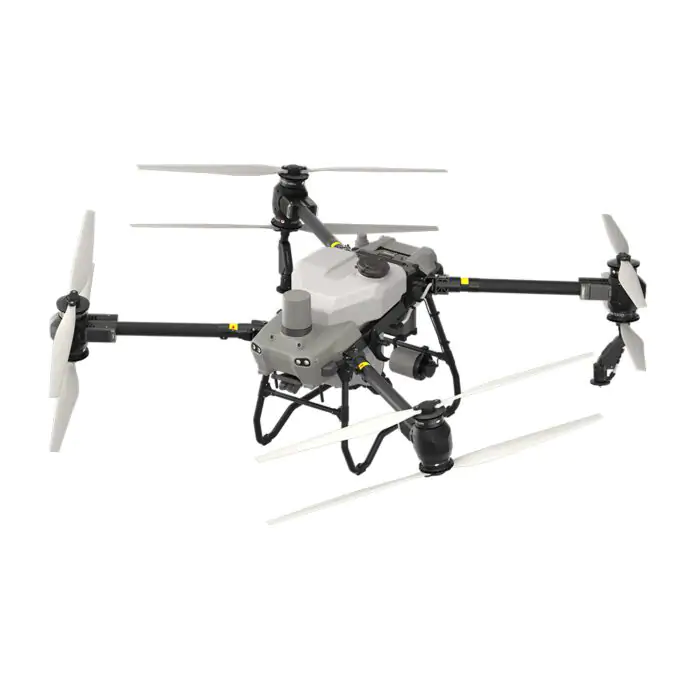

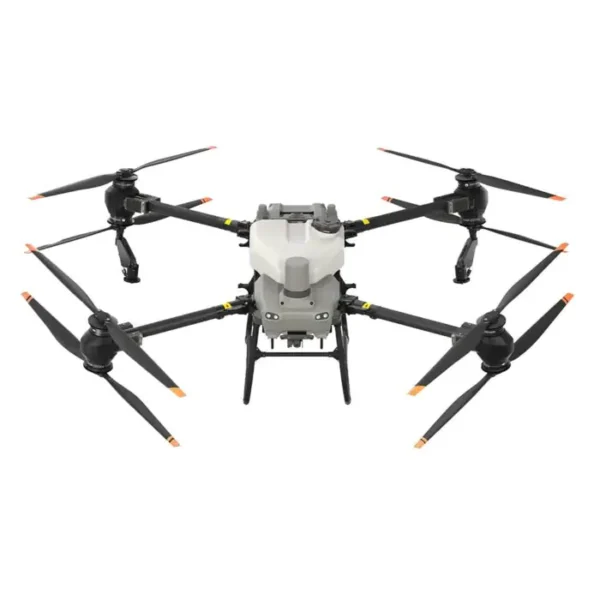

DJI AGRAS T50

Equipped with a coaxial dual-rotor propulsion system with a separate torsion-lock structure, which is more than 3 times stronger than previous generations in both high and low temperature environments, the torsional strength can be stable at more than 470Nm to cope with high-frequency, high-strength, and complex flight protection operations.

In addition, the outer diameter of the arm has been increased to 54mm compared to its predecessor, a 27% improvement in bending and torsion resistance compared to its predecessors. Its base uses high-temperature resistant composite materials, which are stronger and more durable.
The blades use 54-inch high-strength blades, are not easy to deform.
Upgrade the power adjustment, heat dissipation is better, the flow capacity is stronger, and the operation is safer.

Equipped with a dual-fogging spray system, dual radar vision and flight measurement, flight defense in one, it is widely used in a variety of application scenarios, such as field spraying, fertilizer, and fruit tree spraying.

Compared with its predecessor, the T50 with two spray heads can reach 16 liters/minute, and the four-head spray can reach
24 liters/minute, with spray sizes ranging from 50 to 500 microns.
In addition to the dual-spray system, the T50 includes a new electromagnetic valve. This electromagnetic valve is durable and precise in starting and stopping, effectively preventing liquid leakage.

It can cover 320 acres of field operation area per hour. At the same time, it also supports seeding with a 50 kg load, and a 75-liter large capacity can sow 1.5 tons of fertilizer in one hour.
In addition, the new seeding motors and spiral channel launch plate have also significantly improved seeding efficiency and smoothness.

The integrated spraying system with a 50L payload can be equipped with the optional orchard spraying package or interchanged with a dispersal system with a dispersal payload of up to 50Kg.

The T50 is equipped with phased array radar systems, a dual-radar, dual-vision system, and can ensure flight safety. The front active phased array radar system increases the number of radio frequency transmission and reception channels to achieve more precise detection. The rear phased array radar enables 360-degree all-round obstacle avoidance and intelligent diversion. Dual-vision synergy for flight safety.
And with a new update. Four O3 Phototransmission Agricultural Edition antennas significantly improve the ability to work in complex situations. This is primarily reflected in the anti-interference capability and 2 km transmission distance, ensuring that the navigation process is not affected, guaranteeing operational safety in situations of severe mountain obstruction and complex working environments.

It features an octa-core processor and powerful computing power. It features a 7-inch display and an ultra-high-definition FPV cloud camera with adjustable angles, allowing it to capture real-time images of farmland and orchards. Users can easily operate it with the help of the intelligent remote control. One-click takeoff and generate high-definition maps and flight paths for full-time automatic operations.

The T50’s obstacle protection system helps growers conduct comprehensive aerial measurements and operations, providing accurate data to improve management efficiency and the quality of fruit tree production. The system can perform aerial measurements of fruit trees with a maximum slope of 50°. This means it can operate freely on steep terrain and accurately measure the shape and distribution of fruit trees.

Based on the distribution of fruit trees, it can generate precise three-dimensional routes. At the same time, it can map the entire flat route area, automatically identify land boundaries and obstacles, and quickly plan the route.

Compared with traditional mapping methods, the T50 can perform aerial measurements with greater efficiency and accuracy. A map of 200 acres can be created in just 10 minutes. The circular route is suitable for accessible intermediate blocks; mapping work for 100 acres can be completed in just 2 minutes.

The DJI AGRAS T50 is equipped with a 7-inch remote controller screen, which supports intelligent route planning and a transmission distance of up to 2 km.

The T50 boasts excellent performance, with its 30 amp-hour DB156 Intelligent Flight Battery capable of 150 flight cycles. Additionally, with the D12000iEP frequency conversion charging station, air-cooled radiator, and 150W/220V AC output, the T50 achieves an overall fuel saving of 15% and can quickly charge in just 9 minutes. Whether for outdoor travel or other power needs, the T50 can meet users’ needs.

Thanks to the development trends of modern precision agricultural operations, intelligent, efficient, and smart, environmental protection, and convenience, agricultural drones are increasingly used in modern agricultural production. The T50 agricultural drone, despite its launch almost a year late, still holds a strong market position, and its configuration and performance remain highly competitive. We look forward to the future development of agricultural plant protection machines, with ever-increasing growth and ever-increasing service to agricultural professionals.
