Description
DJI Agras T25 – Precision Agriculture Redefined
The DJI Agras T25 is transforming the way farmers manage their crops. With its lightweight, foldable frame and powerful autonomous features, the DJI Agras T25 offers an unbeatable combination of portability, precision, and productivity for agricultural operations. Whether you’re managing orchards, row crops, or broad-acre fields, this drone is purpose-built to optimize spraying and spreading—helping you reduce labor, increase coverage, and boost yields.
Key Features of the DJI Agras T25
1. Compact and Lightweight Design
The DJI Agras T25 is easy to carry, deploy, and operate in a wide variety of agricultural environments. It folds quickly and fits into most transport vehicles without dismantling. Despite its compact design, it delivers professional-grade performance and can be quickly readied for flight.
2. 20-Liter Spray Tank and 25-Kilogram Spreader Payload
This drone supports a 20-liter liquid tank for spraying and a 25-kilogram payload for granular materials. It’s designed to cover more ground in less time, reducing the need for manual labor and ensuring even application across the field.
3. Dual Atomization Spray System
The dual atomization nozzles create uniform droplets, significantly improving spray coverage. This allows the DJI Agras T25 to deliver consistent pesticide or fertilizer application with reduced waste and maximum crop protection.
4. 360° Obstacle Detection with Phased Array Radar
With advanced phased array radar and binocular vision, the DJI Agras T25 can intelligently detect and avoid obstacles in real-time. This enables safe, low-altitude flight even in complex terrains or near tree canopies.
5. Multiple Flight Modes for Adaptability
Whether operating in standard farmland, hilly landscapes, or orchards, the DJI Agras T25 offers customizable flight patterns. Specialized modes like Orchard Mode allow for 3D flight path planning to navigate trees and irregular plots with precision.
6. O3 Transmission System
This next-generation transmission system offers up to 2 kilometers of control range, ensuring real-time data relay and flight stability even in remote farming areas. This enhances pilot confidence and operational consistency.
7. Offline Operation Support
For farms in regions with limited connectivity, the DJI Agras T25 offers offline operation capabilities. Pre-loaded routes and mission data can be accessed and executed without requiring real-time cloud access, increasing reliability.
Applications of the DJI Agras T25 in Modern Farming

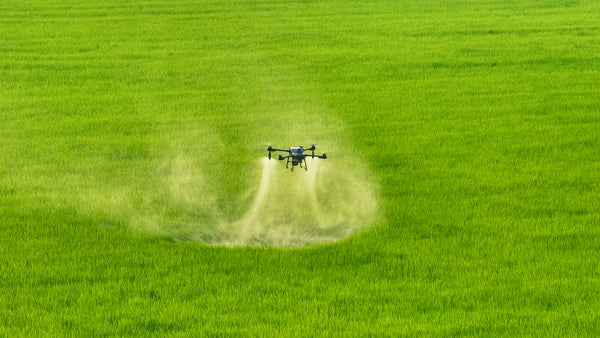

1. Precision Pesticide Spraying
The DJI Agras T25 ensures accurate pesticide application on various crops. It adjusts spray flow automatically based on flight speed and altitude, minimizing chemical overuse and ensuring thorough coverage.
2. Granular Fertilizer Spreading
Switch to the spreading system and the T25 can evenly distribute fertilizers, seeds, or pest control pellets. The spreader handles different granule sizes and densities, giving full control over your nutrient management.
3. Orchard Tree Canopy Management
Thanks to its terrain-following radar and 3D route planning, the DJI Agras T25 excels in orchard environments. It can navigate between trees and apply treatments above and around canopies for thorough pest control and fertilization.
4. Hilly and Irregular Terrain Coverage
Its compact frame and advanced flight capabilities make the T25 ideal for areas with uneven elevation, terraces, or segmented plots. It adapts to terrain conditions and keeps its spray height and speed optimal at all times.
Why Choose the DJI Agras T25 for Your Farm?
✅ Reduced Labor and Input Costs
Automating the spraying and spreading process reduces the need for labor-intensive manual application. One operator with a DJI Agras T25 can do the work of multiple workers in a fraction of the time.
✅ Improved Crop Health and Yields
Consistent and accurate application of agrochemicals leads to healthier crops, fewer pest outbreaks, and better overall yields. The precision of the T25 means fewer missed spots and less crop stress.
✅ Quick Deployment and Easy Transport
The foldable design and lightweight build allow for fast setup and convenient transport. This is crucial for large farms or service providers managing multiple fields or clients per day.
✅ Safety and Compliance
Using drones minimizes human exposure to potentially hazardous chemicals, enhancing safety on the farm. It also supports better documentation and compliance with environmental regulations.
Who Should Buy the DJI Agras T25?
-
Commercial Farms: Manage large-scale operations efficiently with automated spraying and spreading.
-
Precision Ag Service Providers: Offer high-tech spraying services to multiple clients with consistent results.
-
Orchard Managers: Target tree canopies and navigate between rows with pinpoint accuracy.
-
Government and Cooperatives: Support rural farming initiatives with cost-effective and scalable technology.
-
Agronomists and Crop Consultants: Use the T25 for trial plots, data collection, and input optimization.
Technical Specifications Summary
| Feature | Details |
|---|---|
| Max Spray Payload | 20 Liters |
| Max Granule Payload | 25 Kilograms |
| Spray Width | 4–7 Meters |
| Flight Time (Typical) | 10–20 Minutes (Depending on Load) |
| Max Coverage per Hour | Up to 16 Hectares |
| Obstacle Detection | 360° Radar + Binocular Vision |
| Transmission Range | Up to 2 Kilometers (O3 System) |
| Foldable Design | Yes |
| Compatible Modes | Manual, Semi-Auto, Orchard, Mapping |
Final Thoughts on the DJI Agras T25
If you’re looking for a compact, smart, and high-performance agricultural drone that enhances efficiency and minimizes operational costs, the DJI Agras T25 is the perfect solution. It combines the best of DJI’s drone engineering with features tailor-made for the demands of today’s agricultural producers. Whether you’re looking to optimize pesticide usage, enhance soil health through precision fertilization, or offer advanced agri-services, the Agras T25 is a long-term investment in productivity, sustainability, and profitability.
To meet flexible and efficient single-person operation, the T25 has a smaller body and weight, a spraying payload of 20kg, a seeding payload of 25kg, and also supports multi-scene seeding operations.
DJI AGRAS T25 redefines the standards for compact agricultural drones. Lightweight and agile, DJI AGRAS T25 can be easily operated by a single person. It can carry a spraying payload of up to 20kg or a spreading payload of up to 25kg . DJI AGRAS T25 is equipped with front and rear phased array radars, a binocular vision system, and a high-resolution FPV camera with gimbal. DJI AGRAS T25 enables multiple missions from inspection to spraying and spreading, and excels in a variety of terrains.
Light and agile
Foldable and simple for solo work
Small for easy takeoff and landing
Spraying or spreading
20 kg spray tank, flow rate 16 l/min
25 kg spreading tank, flow rate 72 kg/min
Signal stability
Offline operation
O3 transmission at 2 km
Optional DJI Relay
Adapts to all scenarios
Fully automatic and manual operation
Orchard mode
Variable rate application
Multidirectional obstacle detection
Multi-directional anti-collision system
Terrain following up to 50°
Four-sprinkler kit (optional)
Reverse spraying in flight
Spraying with 4 nozzles, flow rate 24 l/min
Foldable, flexible,
functional
DJI AGRAS 25 features a lightweight, foldable design. Optimized for solo operations, its unfolded dimensions have been reduced by 21% compared to its predecessor. Carry it, fold it, unfold it, and land it with flexibility.
Additional sprinklers to simplify spraying
The DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprayers for four-spray spraying. When flying in manual mode, use reverse spraying to simplify operation without having to make turns. The DJI AGRAS T25 is equipped with a high-resolution FPV camera with a gimbal that allows you to view the surrounding environment in real time for safer flight.
Sprinkler system
High spray rate,
no leakage
The DJI AGRAS T25’s dual spray system provides a wide flow rate of up to 16 L/min (with 2 sprayers). It produces uniform, fine spray droplets and is leak-free. The DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprayers, increasing the flow rate to 24 L/min (sprayed with 4 sprayers) for tasks requiring a high application volume, increasing spray range, operating efficiency, and leaf coverage.
Magnetic centrifugal pump
Dual atomized centrifugal sprinklers
The microdroplet size can be adjusted from 50 to 500 μm, depending on the chemicals used.
New solenoid valves
DJI AGRAS T25 Spreading System
Spread with speed
The DJI AGRAS T25’s new spreader and spiral chute rotating disc significantly improve spreading efficiency and smoothness.
Payload of 25 kg
Maximum capacity of 35 l and an enlarged loading gate for quick filling.
Uniform Spreader
Upgrade to smaller hopper gates for more precise distribution at low flow rates. Combined with the rotating disc and spiral chute, the spread is more uniform.
Real-time scale
The DJI AGRAS T25 is equipped with a balance sensor that allows you to monitor the remaining payload in real time.
Quick disassembly and cleaning
The spreader can be quickly disassembled and cleaned for easy maintenance.
Spraying and spreading operations are frequent, intensive, and take place in complex environments. The DJI AGRAS T25 has passed hundreds of reliability tests, and its durable main body ensures safe operation.
Binocular vision and dual radar
DJI AGRAS T25 is equipped with front and rear active phased array radars with double the RF channels for greater detection accuracy. Together, they enable multi-directional obstacle sensing, increasing operational safety. Two sets of binocular vision sensors allow DJI AGRAS T25 to accurately detect the terrain and map obstacles in detail, enabling automatic obstacle avoidance and Terrain Following on steep slopes.
Obstacle Sensing
Terrain Projection
Obstacle Avoidance
DJI AGRAS T25 integrates aerial inspection [2] , spraying, and spreading into a single drone. A high-resolution FPV camera with a gimbal allows for real-time image capture of fields and orchards. Combined with DJI RC Plus and RTK service, it can generate high-definition maps to support subsequent automated flight paths. DJI AGRAS T25 can take off and perform automated operations with the push of a button.
DJI AGRAS T25 enables obstacle avoidance and Terrain Following for inspection [2] of orchards on slopes up to 20° [5] . With DJI RC Plus and its real-time mapping features, it can automatically identify fruit trees and obstacles. Based on the distribution of fruit trees, it can generate accurate and fully automatic 3D flight paths.
The 8-core processor provides ample computing power and enables smoother operations. Intelligent route planning reduces the number of inefficient flights with a full load and greatly increases operational efficiency. The large, high-brightness 7-inch display offers a wider view with sharp details. Manual mode allows for controlled operations.
The new and improved O3 four-antenna video transmission system works even in areas without cellular coverage, offering a transmission range of 2 km. Its anti-interference feature helps ensure high signal quality during operations in high crops.
DJI Relay (optional)
The DJI Relay ensures smooth, real-time video transmission for safer flights, even in complex operational scenarios with signal obstructions.
The D6000i multifunctional inverter generator offers efficient reversing and rectification, maximizing fuel savings. The DB800 intelligent flight battery enables ultra-fast charging in 9 minutes. The C8000 intelligent charger can charge batteries directly from the mains.
Capacity increased to 15.5 Ah
Warranty covers 1500 charge cycles [15]
D6000i Multifunctional Inverter Generator [19]
1500W AC output
Ultra-fast charging in 9 minutes [7]
C8000 Smart Charger
Charging up to 5400 W [17]
Dual-channel AC charging
Adaptive power protection
Aircraft
-
Weight
-
25.4 kg (without battery)
32 kg (with battery)
-
Maximum takeoff weight [1]
-
Maximum take-off weight for spraying: 52 kg (at sea level)
Maximum take-off weight for spreading: 58 kg (at sea level)
-
Maximum diagonal wheelbase
-
1925 mm
-
Dimensions
-
2585 × 2675 × 780 mm (arms and propellers extended)
1475 × 1540 × 780 mm (arms extended and propellers folded)
1050 × 690 × 820 mm (arms and propellers folded)
-
Hovering accuracy range (with strong GNSS signal)
-
D-RTK on:
Horizontal: ±10 cm, Vertical: ±10 cm
D-RTK off:
Horizontal: ±60 cm, Vertical: ±30 cm (radar module on: ±10 cm)
-
RTK/GNSS operating frequency
-
RTK:
GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
GNSS:
GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1
-
Maximum configurable flight radius
-
2000 m
-
Maximum wind resistance
-
6 m/s
Propulsion system – Engines
-
Stator size
-
100×28 mm
-
KV
-
59 rpm/V
-
Power
-
4600 W/rotor
Propulsion system – Propellers
-
Material
-
Nylon carbon fiber filament
-
Dimensions
-
50 inches
-
Propeller rotation diameter
-
1270 mm
-
Amount
-
4
Dual spray system – Spray tank
-
Material
-
Plastic (HDPE)
-
Volume
-
20 L
-
Load capacity [1]
-
20 kg[1]
-
Amount
-
1
Dual spray system – Sprayers
-
Model
-
LX8060SZ
-
Amount
-
2
-
Nozzle distance
-
1368 mm (rear nozzles)
-
Microdroplet size
-
50-500 μm
-
Effective spray width [2]
-
4-7 m (at a height of 3 m above the crops)
Dual spray system – Distribution pumps
-
Guy
-
Centrifugal (magnetic) pump
-
Amount
-
2
-
Individual pump flow rate
-
0-12 L/min
-
Maximum flow rate
-
16 L/min (2 sprinklers)
24 L/min (4 sprinklers)
DJI AGRAS T25 Spreading System
-
Compatible material diameter
-
0.5-5 mm
-
Spreading tank volume
-
35 L
-
Internal load of the spreading tank [10]
-
25 kg [1]
-
Effective spray width
-
It varies depending on the material diameter, the speed of the rotating disc, the hopper outlet size, and the flight altitude. To achieve optimal operating performance, it is recommended to adjust the corresponding variables so that the spreading range is 5 to 8 meters.
Array radar system
-
Model
-
RD241608RF (front-end phased array radar)
RD241608RB (rear-end phased array radar)
-
Ground monitoring
-
Max slope in Mountain Mode: 20°
Altitude detection range: 1-50 m
Stabilization operating range: 1.5-30 m
-
Anti-collision system [4]
-
Obstacle detection range (omnidirectional): 1-50 m
Field of view:
Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Operating conditions: Flight at a height greater than 1.5 m above the obstacle at a speed not exceeding 10 m/s and a vertical speed not exceeding 3 m/s.Safety limit distance: 2.5 m (distance between the front of the propellers and the obstacle after braking)
Detection direction: 360° omnidirectional detection
Binocular vision system
-
Measuring range
-
0.5-29 m
-
Effective detection speed
-
≤10 m/s
-
Field of view
-
Horizontal: 90°, vertical: 106°
-
Operating environment
-
Adequate lighting and recognizable surfaces
Remote control
-
Model
-
RM700B
-
Operating frequency [5]
-
2.4000-2.4835 GHz, 5.725-5.850 GHz
-
Transmission range
-
7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
(obstacle-free, interference-free and at an altitude of 2.5 m)
-
Wi-Fi Protocol
-
Wi-Fi 6
-
Wi-Fi operating frequency [5]
-
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
-
Bluetooth Protocol
-
Bluetooth 5.1
-
Bluetooth operating frequency
-
GNSS
-
GPS+Galileo+BeiDou
-
Screen
-
7.02-inch LCD touchscreen with a resolution of 1920×1200 pixels and a high brightness of 1200 cd/m2
-
Operating temperature
-
-20 to 50°C (-4 to 122°F)
-
Storage temperature range
-
Less than one month: −30 to 45 °C (−22 to 113 °F)
One to three months: −30 to 35 °C (−22 to 95 °F)
Six months to one year: -30 to 30 °C (-22 to 86 °F)
-
Charging temperature
-
5 to 40°C (41 to 104°F)
-
Internal battery operating time
-
3 hours and 18 minutes
-
External battery operating time
-
2 hours and 42 minutes
-
Type of load
-
It is recommended to use a USB-C charger that has been approved by a national certification body at a maximum nominal power of 65 W and a maximum voltage of 20 V. For example, the DJI 65 W portable charger.
-
Loading time
-
Two hours for the internal battery or for both the internal and external batteries (if the remote controller is off and a standard DJI charger is used).
