DJI AGRAS T100

DJI, a leader in drone technology, has designed the T100 as a high-powered agricultural vehicle.
With a maximum takeoff weight of 149.9 kilograms and a payload capacity of up to 150 liters,
the T100 excels at precision spraying, broadcasting, and transporting.
A 2330 mm diagonal wheelbase, HDPE tanks, and 62-inch carbon fiber propellers contribute to its unmatched durability and efficiency.
A dual-motor redundancy system, along with intelligent obstacle avoidance, ensures safe operations even in challenging environments.

Key technical features

1. Massive payload capacity
   • Spraying: Supports up to 75 L of liquid with a spray width that varies from 5 to 11 meters.
   • Transmission: Handles a 150 L Hopper for granules ranging from 0.5 mm to 10 mm.
   • Payload Lift: Equipped to carry loads of up to 85 kilos with a 10-meter rope, making it ideal for various agricultural applications.
2. Advanced navigation and control
   • RTK (Real-Time Kinematic) positioning delivers centimeter-level accuracy, essential for precision spraying and mapping.
   • The DJI RC Plus 2 Controller features a 7-inch high-resolution touchscreen, ensuring perfect control of operations.
3. Efficient energy system
   • DB2160 intelligent batteries provide 41,000 mAh of power, enabling extended flight times and rapid charging in just 8–9 minutes.
   • Together with the D14000iE Variable Frequency Charging Station, the system ensures uninterrupted field operations.
4. Robust security mechanisms
   • Equipped with multi-directional radar systems (front, rear and down), the T100 detects and avoids obstacles up to 60 meters away.
   • High-precision lidar and EIRP technology ensure operations in low-visibility environments or complex terrain.
5. Carbon fiber propeller technology
   • 62-inch propellers provide increased thrust while maintaining structural rigidity, improving both efficiency and durability.

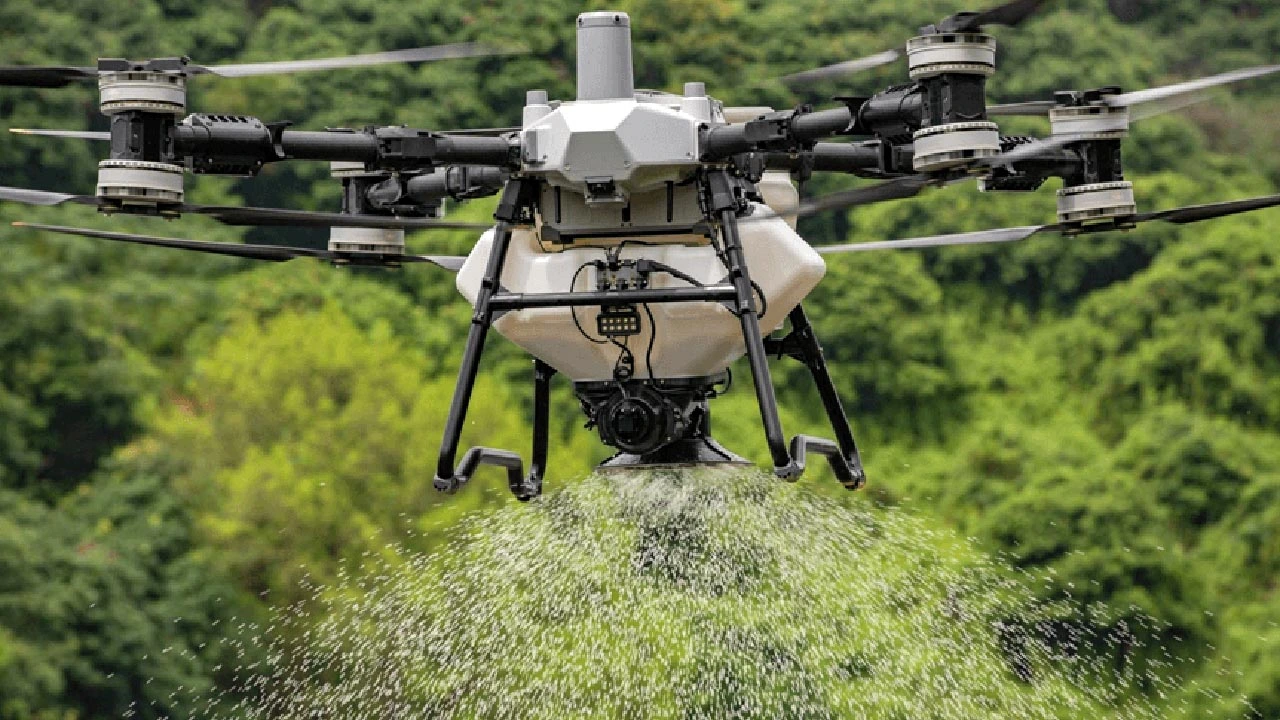

Spraying capabilities: a precision tool

At its core, the T100 is designed for agricultural spraying.
Two standard spray nozzles (upgradable to four) deliver a flow rate of up to 40 liters per minute, covering large fields in record time.
A magnetically driven impeller pump ensures even liquid distribution, with adjustable droplet size from 10–500 μm.
This versatility allows farmers to spray pesticides, fertilizers, and other treatments with unmatched precision, significantly reducing waste and environmental impact.

Spray effectiveness:

• Uniform droplet distribution improves crop coverage.
• Dual spray heads support customized operations for large and small fields.
• Customizable droplet size allows for application across a variety of crops and growth stages.

Spreading system: adaptation to diverse agricultural needs

The T100, in its solid material system, is equipped with a centrifugal discharge plate and a hopper that supports granular materials such as fertilizers and seeds.
Capable of dispensing up to 400 kg per minute, this system is ideal for large-scale agriculture.

Unique Features:

• Interchangeable screw options for different pellet sizes (e.g. fertilizer, rice and herbicide pellets).
• Effective transmission width of 3 to 10 meters, reducing operational passes.
• Minimized clogging and precise flow rates ensure uniform application

Payload Lifting: Beyond Traditional Applications

With a maximum lifting capacity of 85 kilos, the T100 transforms into a reliable transport drone.
The 10-meter lifting rope is ideal for delivering essential supplies to remote agricultural sites or transporting heavy farm implements across rough terrain.
Its robust motor and high-efficiency propellers ensure stability during flight, even in adverse weather conditions.

Signature Safety Features: Advanced Protection for Precision Operations

The DJI T100 is designed with an industry-leading Safety System that integrates radar, lidar, and vision technologies to provide comprehensive protection during operation.
Safety is paramount in agricultural settings, especially when operating large and heavy drones in diverse environments.
This is how the T100 ensures safe and efficient workflows.

1. Multidirectional obstacle avoidance

• Equipped with active phased array radar, the T100 can detect and avoid obstacles up to 60 meters away in all directions.
• Its 360° horizontal field of view and 180° vertical field of view allow precise navigation even in complex terrain such as orchards or plantations with dense vegetation.

2. Smart Return to Home (RTH)

• The T100’s real-time positioning using RTK technology ensures it can return to its takeoff point with centimeter-level accuracy in the event of signal loss or low battery.
• The RTH function intelligently avoids obstacles in its path, thanks to lidar and radar inputs.

3. Resilience to high temperatures

• With operating temperatures ranging from 0°C to 40°C, the T100 is designed to withstand harsh farming conditions, including prolonged exposure to sunlight or cold mornings.

4. Durable and reliable design

• The use of carbon fiber composite materials ensures that the T100 remains lightweight yet highly durable. This reduces wear and tear during demanding field operations.

Ease of use: designed for beginners and professionals

The T100 agricultural drone bridges the gap between ease of use for beginners and advanced control for experienced pilots. Its intelligent systems make it accessible to users of all skill levels while maintaining professional-grade performance.

For beginners: simplified operation

• Three-step setup: Mark the field boundaries, select the operation type, and let the drone take care of the rest.
• Pre-programmed operating modes for spraying, broadcasting, or lifting ensure that new users can achieve precise results with minimal training.
• The DJI RC Plus 2 Controller offers an easy-to-use interface with real-time guidance, making it easy to operate large-scale drones.

For professionals: Enhanced Control

• Advanced manual flight options allow experienced operators to customize flight paths for complex terrain.
• The integrated LiDAR Scanning This feature allows you to map and assess uneven terrain, generating flight paths that follow the terrain with high precision.
• Supports multitasking operations, such as spraying and mapping simultaneously, to save time and resources.

Applications: Transforming agricultural operations

The DJI T100 isn’t just a drone; it’s a multifunctional agricultural tool designed for a wide range of applications. Its adaptability to diverse scenarios makes it an invaluable asset for modern agricultural operations.

1. Crop spraying

• Ideal for large plantations, orchards and greenhouses.
• Deliver pesticides, herbicides, and liquid fertilizers accurately, reducing chemical waste and optimizing crop health.

2. Fertilizers and broadcast sowing

• Capable of spreading granulated fertilizers, seeds and herbicides over large areas of fields.
• It reduces labor costs and operating time, allowing farmers to cover more land in less time.

3. Livestock management

• It is used in remote areas to deliver food, medicine or other essential products to livestock.
• The 85kg lifting capacity allows for efficient transport of supplies.

4. Environment

• With its high-resolution cameras and LiDAR capabilities, the T100 can monitor crop health, soil conditions, and water usage.
• Data collection enables farmers to make informed decisions and improve performance.

Performance Insights: Efficiency Redefined

1. Superior payload management

The T100’s ability to switch between payload types (spray tanks, seed hoppers, or lifting hooks) ensures farmers can optimize the drone for specific tasks. Its modular design minimizes downtime when transitioning between roles.

2. Long flight time

• The DB2160 intelligent battery provides extended flight times with fast recharge cycles.
• A full battery recharge takes only 8-9 minutes, ensuring uninterrupted operations for large-scale tasks.

3. High-performance propulsion

• The 62-inch carbon fiber propellers generate exceptional thrust, allowing the drone to maintain stability under heavy loads.
• Low KV motors (60 rpm/V) provide efficient use of energy, extending operating time.
