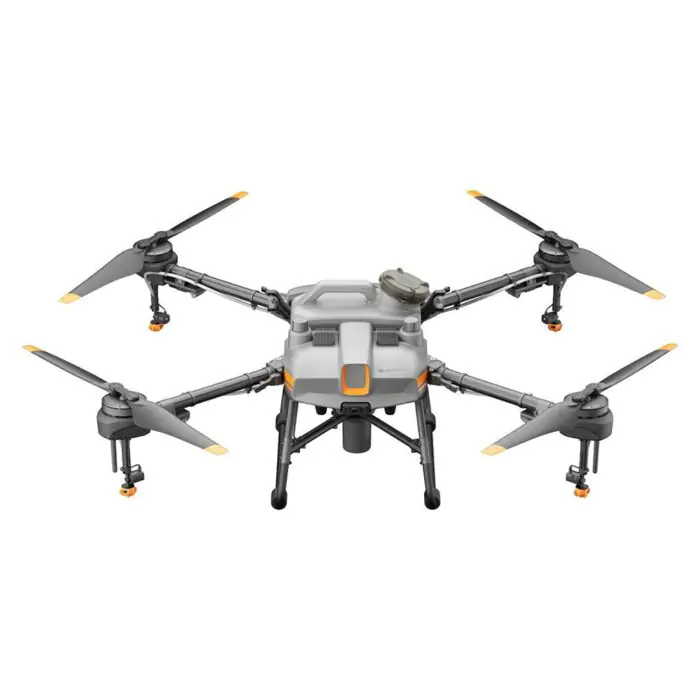

DJI Agras T10

Description

DJI Agras T10

The ideal drone for new farmers

The DJI Agras T10 offers a highly compact yet powerful aerial solution for farms of all sizes and needs. Its foldable truss structure is sturdy and reliable, allowing for efficient folding and unfolding, convenient transport, and easy transitions.

Light and convenient

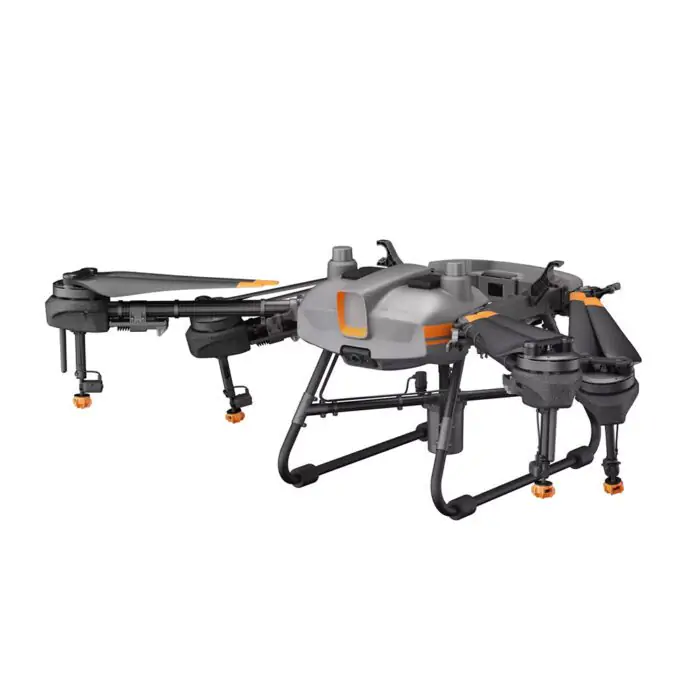

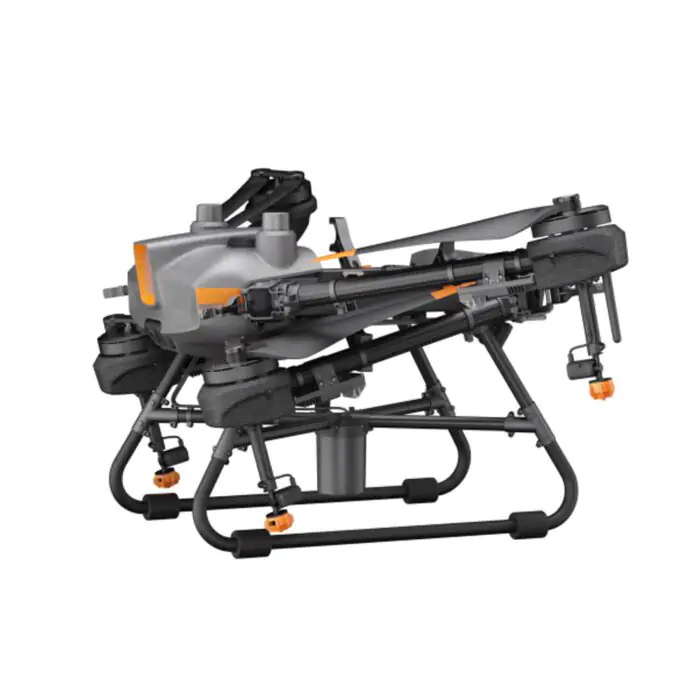

A carbon fiber composite body keeps the Agras T10 lightweight and durable. It can also be folded 70% for convenient transport. The battery and tank can be quickly attached and detached for more efficient recharging.

• 8 L spray tank
• Spherical radar system
• IP67 water and dust resistance
• Dual FPV cameras for monitoring
• High-precision autonomous operation
• Smart Agriculture Cloud Platform

Fully autonomous for easy flight

The aircraft takes off at the touch of a button. Autonomous planning and automatic edge sweeping offer wide spray coverage and effortless operation. The T10 also comes standard with a centimeter-precision RTK positioning module. The new DJI Agriculture app enables a smoother system experience and more intuitive operation.

Precision spraying, no redundancy or leakage

The Agras T10 features a four-nozzle design with an output rate of up to 2.4 liters per minute. A dual-channel solenoid flowmeter controls the nozzles for uniform spraying and precise volume control, critical in pesticide distribution.

Eliminate blind spots with a spherical radar system

A spherical radar system detects obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. The automatic obstacle avoidance and adaptive flight system functions help ensure safety during operation.

Dual FPV cameras for clearer control

Equipped with dual FPV cameras, the T10 provides clear front and rear views, allowing you to check flight status without turning around. Additionally, its high-brightness searchlight doubles the drone’s night vision capabilities, creating more possibilities for nighttime operations.

Designed with integrity for long-term service

The Agras T10 control module utilizes a fully enclosed structure for durability. Three layers of protection over critical components provide an overall IP67 water resistance rating against pesticides, dust, fertilizers, and corrosion. The arm folding mechanism utilizes a quick-lock mechanism and redundancies to help ensure operational safety.

Ultra-bright display, maximum control

An upgraded remote controller supports stable image transmission from up to 5 km away, up 67% from the previous generation.  ^[2]  A 5.5-inch high-brightness display delivers a clear view, even in extreme lighting conditions. For increased productivity, one remote controller can control multiple drones at once. The standard RTK high-precision positioning module implements centimeter-level operation planning. Additional improvements include stronger signaling, interference-proof, and operational stability. The new DJI Agriculture app enables a smoother system experience and more intuitive operation.

Two batteries and a charger for easy reuse

1000 cycles per 1650 acres

With fewer support components required, the Agras T10 is easier to transport. A newly designed intelligent battery is covered by a warranty for 1,000 charges and 1,650 flight acres; this ultra-long lifespan significantly reduces operating costs. The charging station can fully charge a battery in 10 minutes, enabling continuous cyclic operation of the aircraft with only two batteries and one charger.

DJI Agras T10 Intelligent Flight Battery

A dedicated Intelligent Flight Battery stores 9,500 mAh of power with a 1,000-cycle product warranty.
This battery supports instant charging without waiting for cool-down, circuit board-level encapsulation protection, and water and corrosion resistance.

DJI Agras T10 Intelligent Battery Station

The Agras T10 battery station provides 3,600 watts of charging power and supports rapid charging in 7 minutes.
It also supports dual-channel AC charging with
power adaptation for safer operation.

T10 3.0 Spreading System:
Fast switching and efficient spreading

The Agras T10 can be converted to a spreader system in just three minutes. A 10 kg capacity and a spreading width of up to 7 meters  support an hourly productivity of 14 acres.  It also supports real-time weight monitoring and has an anti-rotation sensor, enabling more accurate refill alerts. This system also supports real-time weight monitoring and has an anti-rotation sensor, enabling more accurate refill alerts. The T10’s overall water resistance rating of IP67 makes it washable and corrosion-resistant, perfectly suited for spraying fertilizers, seeds, and animal feed. When used with digital farming solutions, the Agras T10 implements variable spread, reducing fertilizer use and increasing yields.

Cloud-based 3D farming: Digital agriculture is here

With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate intelligent flight paths. This platform is equipped with an AI recognition system to efficiently patrol fields, identify growth, monitor diseases or pests, and monitor agricultural conditions. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically generated farmland prescription map.

The ideal drone for new farmers

SPECIFICATIONS T10

Functions
Operating efficiency per hour 15 acres
High-precision radar √ Omni-directional digital radar (automatically avoid obstacles)
Remote control planning accuracy √ (RTK/GNSS)
Pipeline air extraction √ (One-key air extraction)
AI engine 3D operation planning √
High-precision flow meter √ (Dual-channel electromagnetic flow meter with an error of ±2%)
Level gauge
Single-point level gauge
Max flow rate spraying rate
1.8 L/min (with standard XR11001VS nozzle) 2.4 L/min (with optional XR110015VS nozzle)
Pesticide tank installation method
Quick-connect pesticide tank
Battery installation method
Quick plug-and-play battery
One remote controller for multiple drones √ (one remote controller for three drones)
D-RTK technology √
Upward-looking radar module √
Flight points function √
Intelligent cruise/return function √
Intelligent supply point prediction x
Coordinated turn function √
Forward-looking FPV √ Backward-
looking FPV √
Our own brand technology x

DJI Agras T10
SPECIFICATIONS

Downloads
FAQ
Conta
Camera Drones
Handheld Products
Specialized
Explore
Support
1/26/23, 10:23 T10 – Specifications – DJI
https://www.dji.com/t10/specs 2/8
Drone Parameters
Total Weight (without batteries) 13 kg
Rated Takeoff Weight 24.8 kg (near sea level)
Hover Accuracy
(with good GNSS signal)
With D-RTK enabled:
±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6 m (horizontal) and ±0.3 m (vertical) (With radar function enabled: ±0.1 m)
RTK/GNSS Frequency Bands RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1
Maximum Power Consumption 3700 W
Hover Power Consumption: 3200 W
Hover Time 17 min (at 9500 mAh and 16 kg takeoff weight)
9 min (at 9500 mAh and 24.8 kg takeoff weight)
Maximum pitch angle 15°
Maximum operating flight speed 7 m/s
Maximum horizontal flight speed 10 m/s (with good GNSS signals)
Maximum bearable wind speed 8 m/s
Maximum flight altitude 4500m
*Reduce the amount of pesticide by 12% with every 1,000 meters of altitude increase. Recommended operating
ambient humidity
< 93% Recommended operating
ambient temperature 0 to 45°C RACK PARAMETERS Maximum rotor spacing 1480 mm Dimensions 1958 mm × 1833 mm × 553 mm (with arms and blades extended) 1232 mm × 1112 mm × 553 mm (with arms extended and blades folded) 600 mm × 665 mm × 580 mm (with arms folded) POWER SYSTEM – MOTOR Stator size 100×10 mm KV value 84 rpm/V Maximum pulling force 11.2 kg/rotor Maximum power 2500 W/rotor 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 3/8 Weight 527g POWER SYSTEM – PROPELLERS  Diameter x Pitch 33×9 inch Weight (Single Blade) 92g POWER SYSTEM – ESC Maximum Operating Current (Continuous) 32A Maximum Operating Voltage 60.9V (14S LiPo) CAMERA- FPV FOV Horizontal: 129°, Vertical:82° Resolution 1280×720 15-30fps Focus FPV Maximum Luminous Intensity 13.2 lux at 5m under direct light Spray System – Operation Tank Operation Tank Volume 8L at full load Operating Load 8kg at full load Spray System – Nozzles Sprayer Model XR11001VS (Standard) XR110015VS (Optional) XR11002VS (Optional) Number of Sprayers 4 Max Flow Rate Spraying speed XR11001VS: 1.8 L/min XR110015VS: 2.4 L/min XR11002VS:3 L/min Atomized particle diameter XR11001VS : 130 – 250 μm XR110015VS : 170 – 265 μm XR11002VS: 190 – 300 μm (Depending on the actual operating environment, spraying flow rate, and other factors) Maximum effective spraying width 3 – 5.5 m (With 4 sprayers and a distance of 1.5 – 3 meters from the crops) 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 4/8 Spraying System – Water Pump Water Pump Model Diaphragm Pump Operating Voltage Operation 15 V Maximum flow rate 1.5 L/min ×1 Spray system – Flow meter Flow measurement range 0.25 – 20 L/min Flow measurement error < ±2 % Measurable liquid Conductivity > 50 μS/cm Typical liquid: Tap water, aqueous organic or inorganic pesticides and if

Omnidirectional Anti-collision Radar
Model RD2424R
Operating Frequency SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE: 24.05 to 24.25 GHz Operating
Power Consumption 12 W Equivalent Isotropically Radiated Power (EIRP) SRRC: < 13 dBm; NCC/MIC/KCC/CE/ FCC: < 20 dBm Height Hold & Terrain Follow Height Measurement Range: 1 – 30 m Height Hold Range: 1.5 – 15 m Maximum Slope in Mountain Mode: 35° Collision Avoidance System Perceptible Distance: 1.5 – 30 m FOV: 360° (Horizontal), ± 15° (Vertical) Conditions of Use: The relative flight height of the drone is greater than 1.5 m and the speed is less than 7 m/s. Safety Distance: 2.5m (the distance between the blade tip and the obstacle after the drone keeps hovering stably) Anti-collision System Direction: Horizontally omnidirectional anti-collision system Protection Class IP67 Upward-looking radar Model RD2414U Working Frequency: SRRC/NCC/FCC: 24.05 to 24.25 GHz MIC/KCC/CE:24.05 to 24.25 GHz Aerial Anti-collision System Perceptible Distance: 1.5 – 10m FOV: 80° Conditions of Use: The drone flies a relative distance greater than 1.5m in take-off mode, lands on route. Safe Distance: 2m (the distance between the obstacle and the highest point on the top of the drone) Anti-collision System Direction: Above the drone Protection Class IP67 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 5/8 Equivalent Isotropically Radiated Power (EIRP) SRRC:< 13 dBm;NCC/MIC/KCC/CE/ FCC:< 20 dBm Operating Power Consumption 4 W Battery Model BAX501-9500mAh-51.8V Weight Approx. 3.8 kg Discharge Constant 11.5C Protection Class Board Level Flush Mount Protection IP54+ Capacity 9500 mAh Voltage 51.8 V Remote Control Model RM500-ENT OcuSync 2.0 Operating Frequency 2.400 to 2.483 GHz 5.725 to 5.850 GHz OcuSync 2.0 Effective Signal Distance (without interference or blocking) SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at an operating height of 2.5 m) OcuSync 2.0 EIRP 2.4 GHz SRRC/CE/MIC/KCC: 18.5 dBm; FCC: 29.5 dBm; 5.8 GHz SRRC: 28.5 dBm;

FCC: 20.5 dBm
CE: 12.5 dBm
Wi-Fi Protocols Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac. Wi-Fi Support 2×2 MIMO Wi- Fi
Operating Frequency 2.4000 to 2.4835 GHz 5.150 to 5.250 GHz 5.725 ~ 5.850 GHz Wi-Fi EIRP 2.4 GHz SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHz SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm; 5.8 GHz SRRC/FCC: 18 dBm; CE/KCC: 12 dBm; Bluetooth Protocol Bluetooth 4.2 Bluetooth Operating Frequency 2.4 to 2.4835 GHz Bluetooth EIRP SRRC/MIC/FCC/CE/KCC: 6.5 dBm Positioning GPS + GLONASS 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 6/8 Display 5.5-inch display with 1920 × 1080 resolution, 1000 cd/m² brightness, and A OS 4GB LPDDR4 RAM ( RAM) Storage Space 32GB + scalable storage, plus a microSD card with a capacity of up to 128GB, and UHS-I Speed ​​Grade 3 transfer rate HDMI 1.4 Supported Drones T30 and T10 Plant Protection Drones Operating Power Consumption 18W Ambient Temperature Operation –10°C to 40°C Storage Ambient Temperature -30℃ to 60℃ (within 1 month) -30℃ to 45℃ (1 to 3 months) -30℃ to 35℃ (3 to 6 months) -30℃ to 25℃ (more than 6 months) (with the built-in batteries capacity between 40 and 60%) Charging Ambient Temperature 5℃ to 40℃ Remote Control Built-in Battery Built-in Battery 18650 Li-ion Battery (5000mAh@7.2V) Battery Life 2 hours Charging Method Standard 12V/2A USB Quick Charger Charging Time 2.5 hours (with the standard 12V/2A USB quick charger and the remote control turned off) Remote Control USB-A Port Power Supply Current/Voltage 5 V/1.5 A Intelligent RC Power Bank Model WB37-4920mAh-7.6V Battery Type 2S LiPo Capacity 4920 mAh Voltage 7.6 V Capacity 37.39 Wh Charging Environment Temperature 5℃ to 40℃ Battery Life 2 hours Intelligent RC Power Bank Model WCH2 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 7/8 Input Voltage 17.3 – 26.2 V

Output voltage and current 8.7V, 6A Operating
ambient temperature -5℃ to -40℃ External Smart Battery Charge Manager Power Adapter Model A14-057N1A Input voltage 100 to 240V, 50/60Hz Output voltage 17.4V Rated power 57W T series distribution system 3.0 (8kg) Distribution system weight 3.1kg Maximum opening area 44.6cm² Applicable materials Dry solid particles with a diameter of 0.5 to 5mm Distribution tank volume 12L Maximum internal load of distribution tank 10kg Protection class IP67 Input voltage Power: 60V Control: 15V Maximum power 60V to 250W 15V to 50W Recommended operating ambient temperature 0 to 40℃ Dimensions 405×245×375mm Maximum rotation speed 1300 RPM T10 Smart Charging Manager Dimensions 300×280×230 mm Total weight 8.1 kg Input voltage 100-264 VAC Output voltage 40-60 V Rated power 3,600 W 1/26/23, 10:23 T10 – Specifications – DJI https://www.dji.com/t10/specs 8/8 Charging current 50 A Charging time 7 to 10 minutes Charging voltage accuracy +/-0.1 V Charging current accuracy +/-1 A Number of output channels 2 Protection features Over-temperature, over-voltage, under-voltage, short-circuit, and fan-lock protection Charging environment temperature -20 to 45°C Charging safety AC cable protection, power cable protection, and charging connector protection
