D9000i – Agras Generator

Description

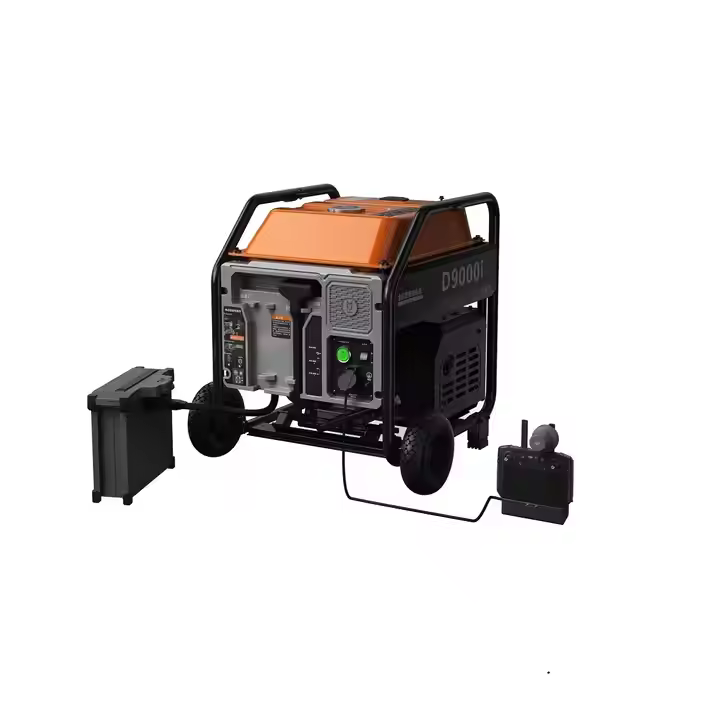

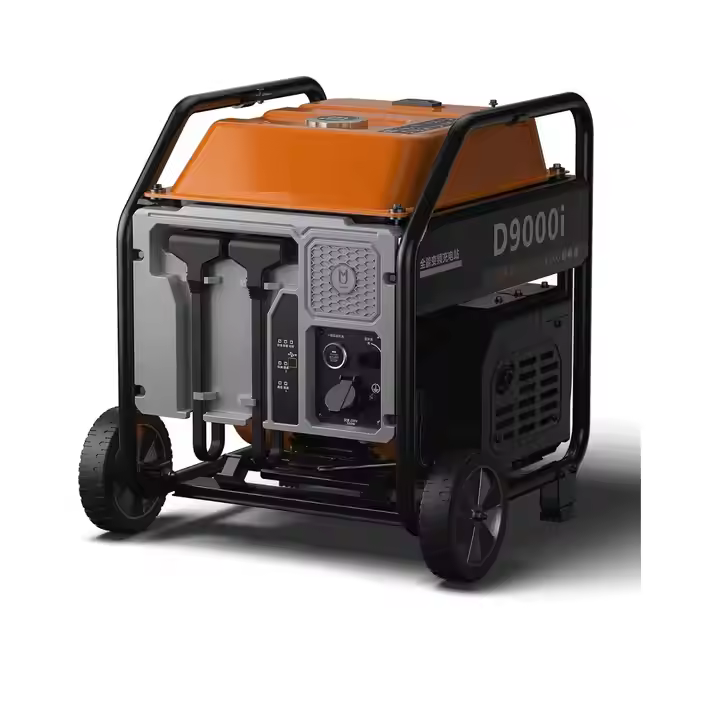

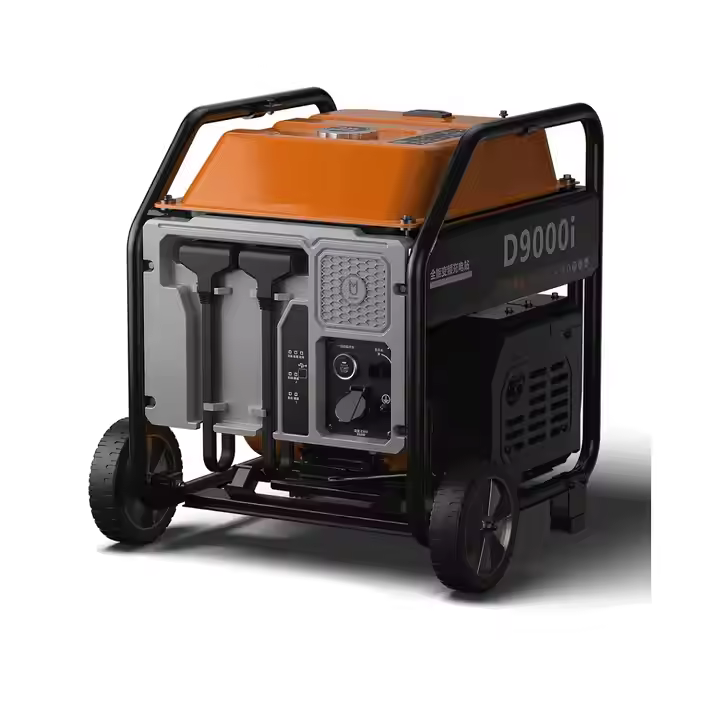

DJI D9000i Agras Generator – Reliable, High-Power Charging for Agricultural Drone Operations

The DJI D9000i Agras Generator is purpose-built to provide high-capacity, efficient power for DJI Agras series drones, especially the Agras T30 and T10. Designed for the demanding needs of modern precision agriculture, this generator supports continuous drone deployment in the field by enabling fast, reliable battery charging. Whether you manage vast crop fields or provide drone spraying services, the DJI D9000i is the powerhouse that keeps your operations running without interruption.

Power Output and Efficiency

The DJI D9000i Agras Generator boasts an impressive maximum output of 9000W, with a rated output of 7200W for DC charging and 300W for AC auxiliary use. It’s optimized to charge high-capacity smart batteries like those used in the Agras T30. When paired with DJI’s T30 battery charger, the generator can charge a battery from 30% to 95% in just 9 to 12 minutes. This high-speed charging cycle drastically reduces drone downtime, increasing field coverage and overall productivity.

Technical Specifications

Safety and Durability

The DJI D9000i Agras Generator includes a wide range of safety mechanisms, ensuring long-term reliability:

• Overload protection

• Low oil shutdown

• Overheat prevention

• Fan stall detection

• Short-circuit protection

These safeguards protect both the generator and your drone batteries. Designed for field conditions, its IP-rated, sealed construction keeps out moisture and debris. This rugged build allows you to use the generator in humid, dusty, or challenging environments without performance degradation.

Smart Power Management and Features

In addition to its raw output, the DJI D9000i Agras Generator features smart power management:

• Digital control panel with real-time voltage, current, and runtime display

• Dual-channel output (DC + AC) for simultaneous drone battery charging and powering tools

• Low-noise operation for improved working conditions in quiet or residential zones

• Parallel operation compatibility, enabling two generators to connect for even higher power output

This makes it not just a generator but a central power hub for large-scale drone operations.

Applications in Precision Agriculture

The DJI D9000i Agras Generator is a crucial companion for:

• Drone sprayer fleets managing pest and fertilizer applications across large plots

• Agricultural service providers offering contract-based drone spraying

• Large-scale farms using drones for mapping, seeding, and monitoring

• Remote field operations where grid power isn’t available

By ensuring your DJI Agras drones are charged and ready, it removes a major bottleneck in drone deployment and operation.

Conclusion

For farmers and agribusiness professionals who rely on DJI Agras drones, the DJI D9000i Agras Generator is more than a power source—it’s a vital piece of operational infrastructure. Its rapid charging performance, robust safety features, and mobile-ready design empower your drone fleet with the energy needed to cover more ground, faster. With the DJI D9000i, you eliminate power-related delays and take full advantage of your investment in agricultural drone technology.

DJI D9000i Agras Generator: Comprehensive Overview

Introduction

The DJI D9000i Agras Generator is a specialized inverter generator designed to meet the power demands of DJI’s Agras series agricultural drones, particularly the T30 model. This generator ensures rapid and efficient charging of drone batteries, facilitating continuous operation in large-scale agricultural applications.​

Key Specifications

• Engine Type: 4-stroke, OHV, air-cooled

• Displacement: 420 cc

• Maximum Power Output: 9000W

• Rated Output: 7200W (DC), 300W (AC)

• Fuel Type: Gasoline (92#)

• Fuel Tank Capacity: 25 liters

• Fuel Consumption: Approximately 0.6 liters per T30 battery charge (from 30% to 95%)

• Oil Capacity: 1.1 liters (SAE 10W-30)

• Engine Speed: 3600 RPM

• Start Method: Electric start with recoil backup

• Operating Temperature Range: -20°C to 40°C

• Operating Humidity: Up to 95%

• Dimensions: 610 × 520 × 625 mm

• Weight: 65 kg​AirUnit+8mavdrones.com+8ModelForce+8agras.vn+4djidronesandaccessories.com+4mavdrones.com+4DJI+7agras.vn+7mavdrones.com+7ModelForce+2technodrones.co+2mavdrones.com+2wifi.kz+7Amtech Systems+7djidronesandaccessories.com+7

Charging Capabilities

The D9000i Agras Generator is engineered to charge DJI Agras T30 drone batteries efficiently:​

• Charging Time: Approximately 9–12 minutes per battery

• Output Voltage: 40–60V DC

• Charging Current: Up to 120A

• Ripple Voltage: ≤200 mV​

This rapid charging capability ensures minimal downtime between flights, enhancing operational efficiency.​

Design and Portability

The D9000i features a compact design with dimensions of 610 × 520 × 625 mm and a weight of 65 kg, making it relatively portable for field operations. Its robust construction ensures durability in various environmental conditions, including exposure to dust and moisture.​

Additional Features

• Dual Output Channels: Provides one DC output for battery charging and one AC output (220V, 300W) for auxiliary power needs.

• User-Friendly Interface: Equipped with a digital display showing operational parameters such as voltage, frequency, and runtime.

• Safety Mechanisms: Incorporates features like overload protection, low oil shutdown, and circuit breakers to ensure safe operation.

• Parallel Capability: Can be connected with another D9000i generator to increase power output for larger operations.

• Environmental Compliance: Meets EPA and CARB standards for reduced emissions, promoting environmentally friendly operations.​ModelForce+2technodrones.co+2mavdrones.com+2mavdrones.

Applications in Agriculture

The D9000i Agras Generator is an essential tool for agricultural professionals utilizing DJI Agras T30 drones. Its rapid charging capabilities and robust design make it suitable for various agricultural applications, including:​

• Crop Spraying: Ensuring timely and efficient application of pesticides and fertilizers.

• Seeding: Facilitating the planting of seeds in large areas.

• Field Monitoring: Providing consistent power for drone operations during field inspections.​

By minimizing downtime and ensuring continuous operation, the D9000i enhances productivity and efficiency in agricultural operations.​

Conclusion

The DJI D9000i Agras Generator is a vital component for maximizing the performance and efficiency of DJI Agras T30 drones in agricultural settings. Its rapid charging capabilities, robust design, and additional features make it a reliable choice for professionals seeking to optimize their drone operations.​
