D4500i – Agras Generator

Description

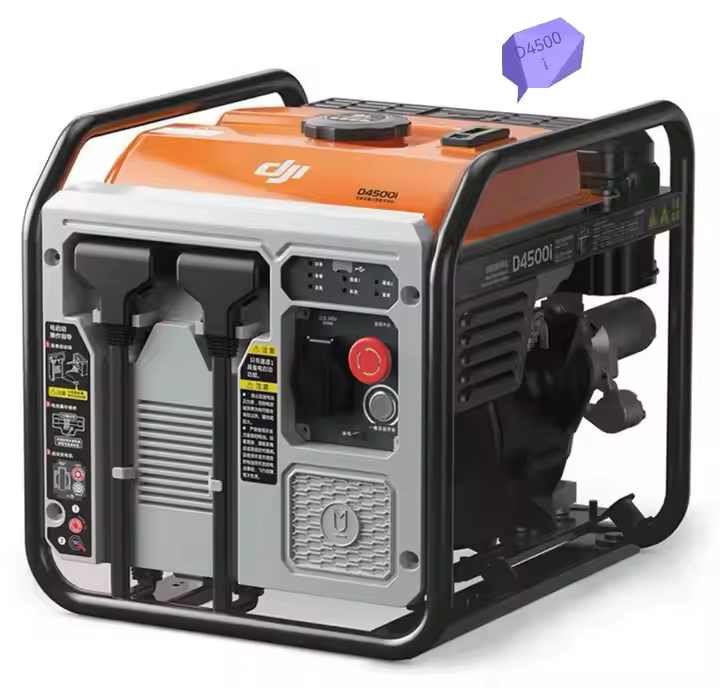

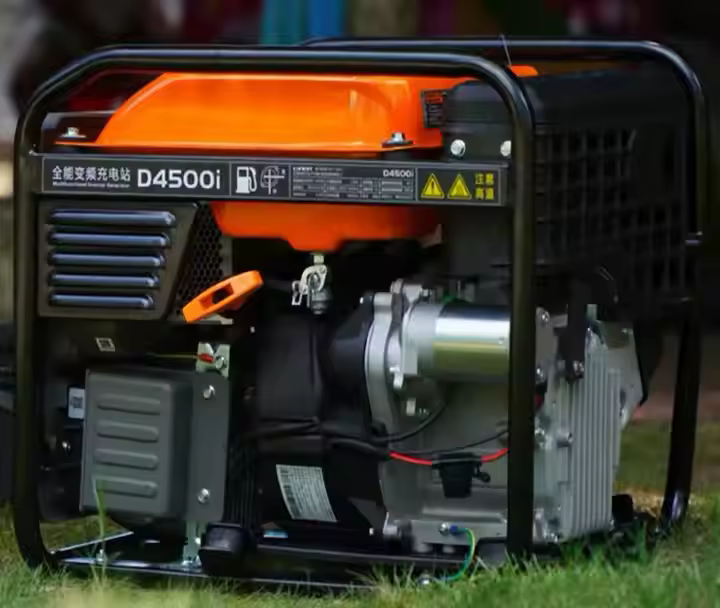

DJI D4500i Agras Generator – Optimized Power for Agricultural Drone Operations

The DJI D4500i Agras Generator is a specialized inverter generator designed to meet the power demands of DJI’s Agras series agricultural drones, particularly the T10, T16, and T20 models. This generator ensures rapid and efficient charging of drone batteries, facilitating continuous operation in large-scale agricultural applications.

Key Features and Specifications

• Engine Type: 4-stroke, OHV, air-cooled

• Displacement: 210 cc

• Maximum Power Output: 4500W

• Rated Output: 3000W (DC), 300W (AC)

• Fuel Type: Gasoline (92#)

• Fuel Tank Capacity: 9 liters

• Fuel Consumption: Approximately 0.3 liters per T10 battery charge (from 30% to 95%)

• Oil Capacity: 0.6 liters (SAE 10W-30)

• Engine Speed: 3600 RPM

• Start Method: Electric start with recoil backup

• Operating Temperature Range: -20°C to 45°C

• Dimensions: 480 × 422 × 427 mm

• Weight: Approximately 36 kg

Charging Capabilities

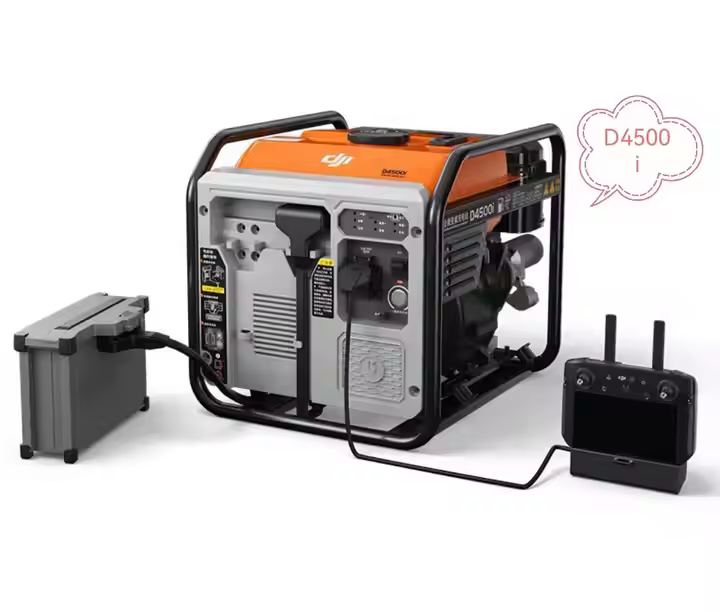

The DJI D4500i Agras Generator is engineered to charge DJI Agras T10, T16, and T20 drone batteries efficiently:

• Charging Time: Approximately 9–12 minutes per battery

• Output Voltage: 40–60V DC

• Charging Current: Up to 50A

• Ripple Voltage: ≤200 mV

This rapid charging capability ensures minimal downtime between flights, enhancing operational efficiency.

Design and Portability

The D4500i features a compact design with dimensions of 480 × 422 × 427 mm and a weight of 36 kg, making it relatively portable for field operations. Its robust construction ensures durability in various environmental conditions, including exposure to dust and moisture.

Additional Features

• Dual Output Channels: Provides one DC output for battery charging and one AC output (220V, 300W) for auxiliary power needs.

• User-Friendly Interface: Equipped with a digital display showing operational parameters such as voltage, frequency, and runtime.

• Safety Mechanisms: Incorporates features like overload protection, low oil shutdown, and circuit breakers to ensure safe operation.

• Parallel Capability: Can be connected with another D4500i generator to increase power output for larger operations.

• Environmental Compliance: Meets IPX4 standards for water resistance, promoting environmentally friendly operations.

Applications in Agriculture

The DJI D4500i Agras Generator is an essential tool for agricultural professionals utilizing DJI Agras T10, T16, and T20 drones. Its rapid charging capabilities and robust design make it suitable for various agricultural applications, including:

• Crop Spraying: Ensuring timely and efficient application of pesticides and fertilizers.

• Seeding: Facilitating the planting of seeds in large areas.

• Field Monitoring: Providing consistent power for drone operations during field inspections.

By minimizing downtime and ensuring continuous operation, the D4500i enhances productivity and efficiency in agricultural operations.

Product descriptions from the supplier

Conclusion

The DJI D4500i Agras Generator is a vital component for maximizing the performance and efficiency of DJI Agras drones in agricultural settings. Its rapid charging capabilities, robust design, and additional features make it a reliable choice for professionals seeking to optimize their drone operations.
