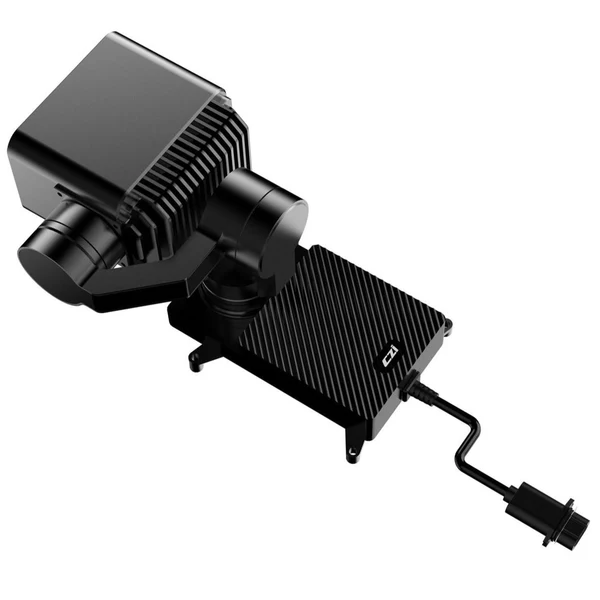

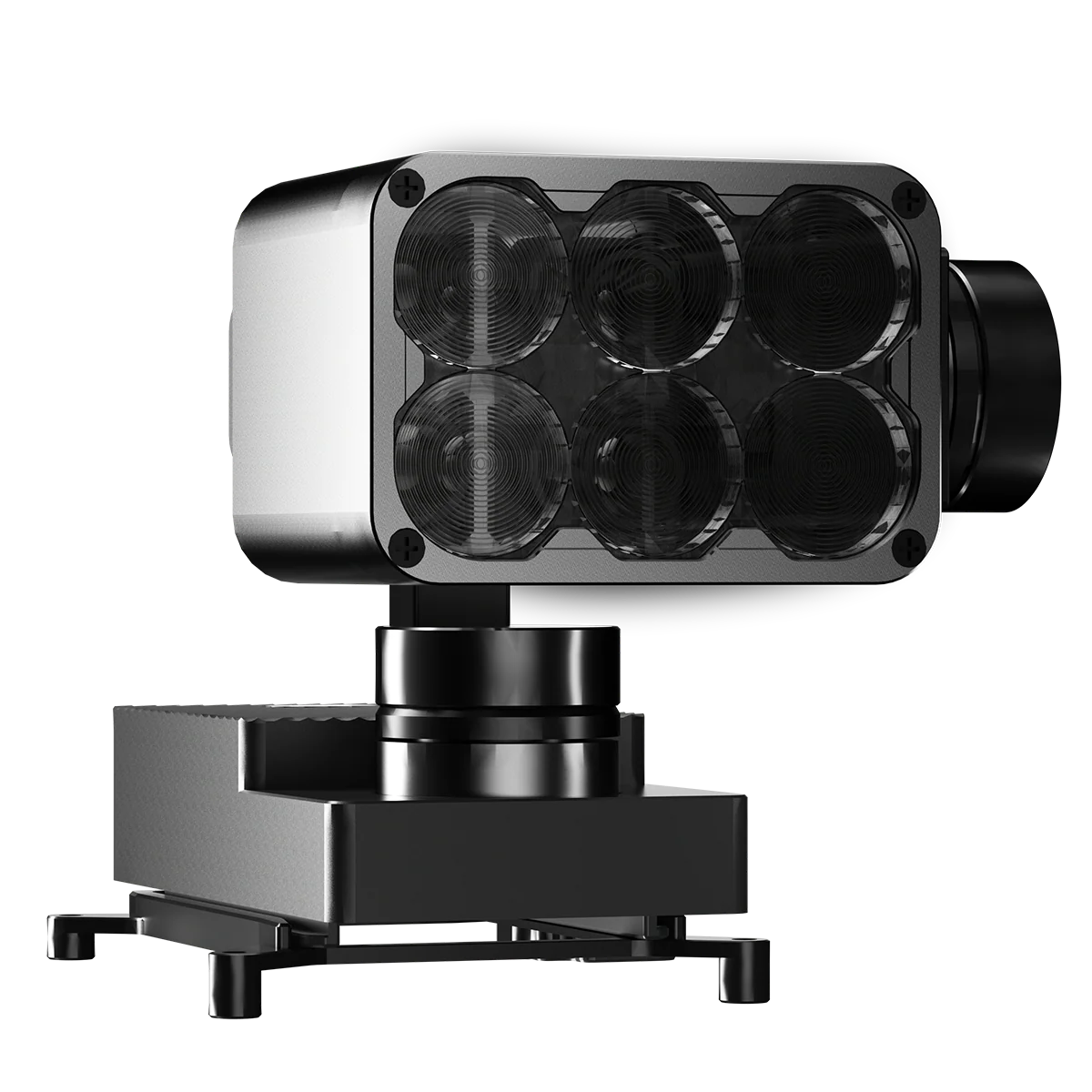

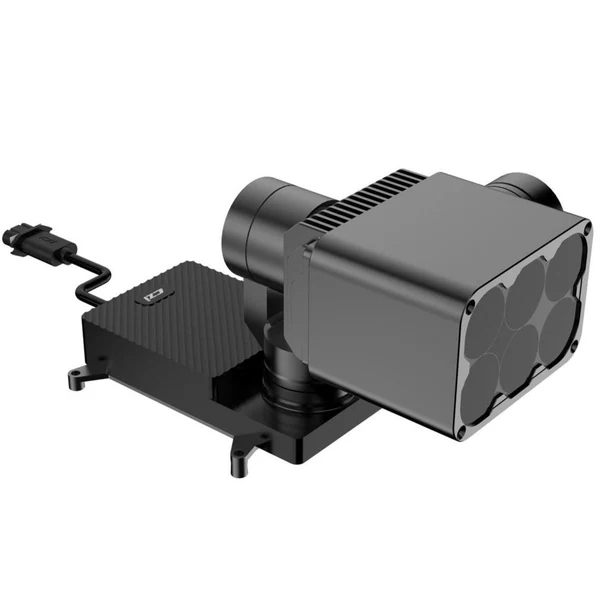

CZI DJI Drone Spotlight Searchlight DJI OSDK Payload GL60 Mini: Redefining Aerial Illumination

The CZI DJI Drone Spotlight Searchlight GL60 Mini OSDK Payload sets a new standard for professional drone lighting. Designed for DJI platforms compatible with the Onboard SDK (OSDK)—including Matrice, M30/M30T, and other enterprise-grade crafts—the GL60 Mini blends high-performance illumination, rugged construction, and intelligent controls into a compact package. Whether for public safety, search and rescue, inspection, filmmaking, or industrial applications, this searchlight provides an efficient, mission-ready extension of your drone’s capabilities.

1. Introduction to the CZI DJI Drone Spotlight Searchlight GL60 Mini OSDK Payload

At the intersection of engineering innovation and practical utility lies the CZI DJI Drone Spotlight Searchlight GL60 Mini OSDK Payload. Engineered for drone operators demanding high-intensity lighting paired with agile deployment, the GL60 Mini is optimized for DJI drones running the Onboard SDK—allowing developers and operators complete control over lighting behavior from flight controllers or companion computers.

Compact yet powerful, this payload addresses the limitations of traditional lighting pods, offering intelligent output control, thermal efficiency, and flight-optimized power draw. In emergencies, low-light inspections, or cinematic shoots, the spotlight extends the drone’s reach—literally illuminating success.

2. Why Choose the CZI DJI Drone Spotlight Searchlight GL60 Mini OSDK Payload

✅ Professional-Level Illumination

• 6,000+ lumen beam with precision optics, ideal for spotting subjects up to 400 m away.

• Cool white LEDs and focused lensing deliver clear visibility with minimal light bleed.

✅ Seamless Integration with DJI OSDK

• Fully controlled via OSDK commands or custom logic—brightness, beam direction, custom flash patterns, emergency strobes.

• Transparent data integration through MSDK telemetry and APIs provides real-time status and diagnostics.

✅ Ruggedized & Lightweight Design

• Weighs just 600–800 g depending on configuration—compatible with Matrice 300/350, M30/M30T, and others.

• CNC aluminum housing with IP67 sealing for rain, dust, and industrial exposure.

✅ Intuitive Power & Thermal Management

• Power draw capped at ~60 W; efficient circuitry maximizes flight time.

• Smart thermal tracking enables automatic dimming or cooldown to preserve lifespan.

✅ Developer-Friendly & Upgradable

• Exposed firmware upgrade port and user SDK support for future feature enhancements.

• Flexible mounting via bottom or front ports, plus optional quick-release adapters.

✅ Simplified Operation & Maintenance

• Standardized mounting, plug-and-play electrical interfaces, and field-replaceable LED module cut pre-flight prep time.

• Real-time LED temperature, output, and fault monitoring via onboard telemetry packets.

---

3. Technical Specifications

4. Installation & Setup

📦 Unboxing

Inside the GL60 Mini retail kit you’ll find:

• Spotlight assembly with mounting bracket

• Wiring harness for DJI OSDK power/data

• USB-C firmware upgrade cable

• Allen key, mounting screws, diffusers (optional)

• Quick-start guide

🔌 Mounting the Spotlight

1. Power down your drone and position GL60 in the DJI OSDK port (front or rear).

2. Tighten screws snugly using provided tool—no calibration needed.

3. Connect the wiring harness into the OSDK bus; the drone’s flight system will auto-detect the payload.

4. Power on the drone and launch DJI Pilot 2 / OSDK-enabled control station.

CZI DJI Drone Spotlight Searchlight DJI OSDK Payload GL60 Mini

⚙ Firmware & Control Calibration

1. Select “GL60 Mini” in payload management.

2. Update firmware if prompted (takes ~2 min).

3. Adjust beam intensity parameters and thermal thresholds.

4. Launch a test flight to calibrate PWM or logic commands and verify telemetry accuracy.

---

5. Operation & Smart Capabilities

🎛 Dynamic Beam Control

• Variable brightness from 10 % to 100 % via OSDK commands.

• Custom flash/strobe modes for SOS signaling or alarm functionality.

• Timed patterns for cinematic effects.

🌡 Thermal & Safety Monitoring

• Drone collects light temperature and current draw.

• OSDK auto-triggers power reduction when thresholds hit.

• Operators can override or schedule cooldowns programmatically.

🗃 Mission Automation

• Incorporate the spotlight in autonomous flies—turn on during waypoint arrival, flash upon landing, or pulse during return-to-home.

• Pair with onboard cameras or LiDAR for targeted illumination during inspections.

📟 Data-Driven Flight Insights

• Log intensity, temperature, and power draw during flight for post-mission analysis.

• Customizable alerts—e.g., “beam output below 20 %” or “temperature above 45 °C”.

6. Flight Time & Power Efficiency

The GL60 Mini’s efficiency keeps drones airborne:

• At 100 % output: draws ~60 W → typical 30–35 min usable illumination with Matrice 300 RTK’s large 96 Wh batteries or similar.

• Mid-level output (~50 %): around 30 W → extends operational time considerably.

• Low-level/pulse mode (<10 %): minimal impact—can remain airborne for most of the base flight duration.

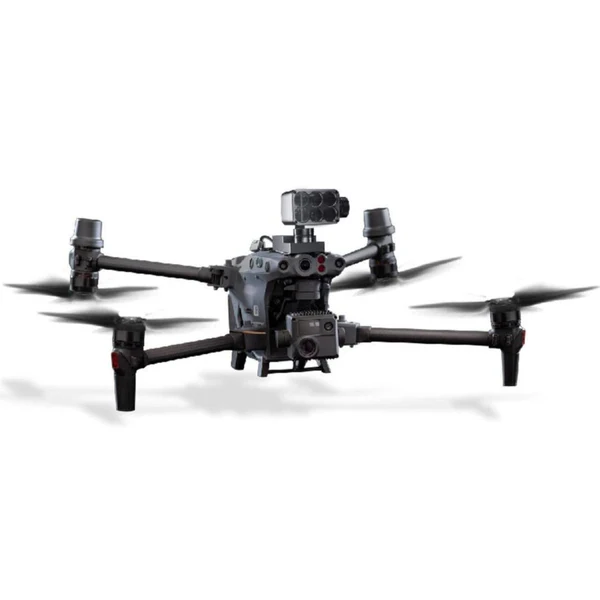

The GL60 Mini Gimbal Search Light is designed for Matrice 30 Series Drones

CZI GL60 Mini Features

• 3 Axis Stabilized Gimbal
• AI Follow
• Illumination Distance of 150M

Field Use Cases

🚓 Search & Rescue (SAR)

Illuminate vast areas with precise beam control. Flash strobe turns the spotlight into a marker to guide ground teams or signify safe zones.

🏭 Infrastructure Inspection

Spotlight structural features in power lines, wind turbines, or telecommunication towers while scanning visuals—coupled with data logs for future reference.

🌄 Cinematic & Media Production

Create dramatic backlighting or directional fill light from vantage points unreachable by ground crews. Program pulses or fades for creative effects.

🚧 Law Enforcement & Security

Disperse crowds, signal compliance zones, and deliver clear visual alerts via strobe modes. Simultaneously combine with OSDK for audio payloads, enhancing situational awareness.

🌊 Marine & Wilderness Operations

Use IP67 rating to hover near water bodies—illuminate dock areas, boats, or search zones at night. Adjustable beam intensity assists in minimizing wildlife disturbance.

---

8. Comparison with Other Drone Searchlights

---

9. Maintenance & Care

• Exterior Cleaning: Use a damp non-abrasive cloth; avoid solvents on LED lens.

• Firmware Updates: Check for updates before missions—flash via USB-C cable.

• Seal Inspections: Ensure O-rings remain intact; replace yearly to maintain IP67.

• LED Module Replacement: Clips allow hot-swapping in field without tools.

• Wire Harness Inspection: Check data/power lines for abrasion before and after flights.

---

10. User Feedback & Testimonials

“The GL60 Mini changed night operations for us. We can hover over SAR zones with confidence, knowing we can still see clearly and be seen.”
— Mountain Rescue DJI Team

“We used it during a tower inspection at 300 feet. Beam clarity was amazing—spotted minute defects on metal fittings.”
— Industrial Drone Surveyor

“The programmable flash mode doubled as a distress signal in wilderness surveys. Simple pattern, but so effective.”
— Forestry Project Pilot

---

11. Frequently Asked Questions (FAQ)

Q: Is GL60 Mini compatible with drones without OSDK ports?
A: No—it requires DJI Enterprise platforms with open terminal access (Matrice 300, M30, etc.). Consumer drones cannot power or control it.

Q: Can I use GL60 Mini underwater inspections?
A: No. It’s IP67-rated for splash and rain, but not for underwater use. Never submerge.

Q: What is the warranty coverage?
A: Standard 12-month warranty; optional extended support available for enterprise clients.

Q: Can I integrate it into automated missions?
A: Absolutely. OSDK allows full flight controller scripting—even beam control can sync with waypoints.

Q: Does it interfere with thermal sensors or cameras?
A: No—coated LED filter ensures no IR spill. Pre-flight checks recommended if using downward-facing thermal cams.

---

12. Where to Buy & Pricing

• MSRP: USD $1,299 (spotlight only).

• Official Distributors: Available via certified DJI enterprise resellers.

• Cameroon Pricing: Local pricing ranges ~1,000,000–1,200,000 XAF, depending on taxes and shipping.

Contact your DJI reseller for tax-inclusive quotes, support, and bundles (e.g., with audio modules, additional mounts, or service plans).

---

13. Conclusion

The CZI DJI Drone Spotlight Searchlight GL60 Mini OSDK Payload is a meticulously engineered lighting solution that brings powerful, intelligent, and programmable illumination to DJI enterprise drones. Its intelligent design, variable beam power, rugged construction, and SDK flexibility empower operators across diverse industries—from rescue operations to cinematic production—to light their missions with precision and control.

By combining effectiveness with real-world durability and smart integrations, the GL60 Mini sets a new benchmark for drone searchlights—making every flight brighter, safer, and more mission-ready.

---

✅ Quick Summary Recap

• 6,000–8,000 lumens, 400 m beam range

• OSDK programmable: brightness, strobe, telemetry

• 600–800 g, IP67 rugged housing

• 10–60 W adjustable, smart thermal control

• Compatible with Matrice, M30/M30T over DJI SDK
