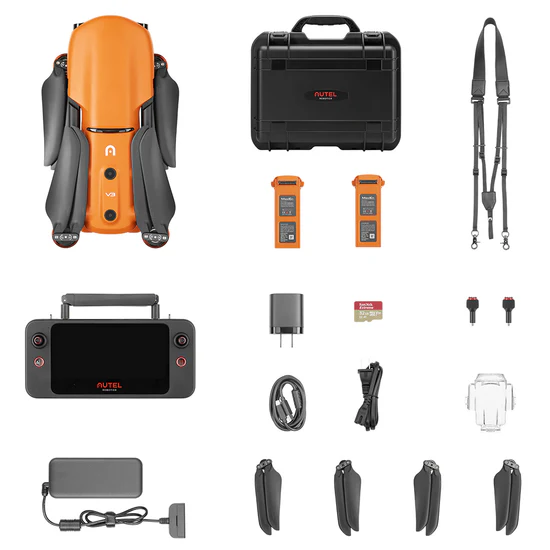

Autel EVO 2 PRO V3 Fly More Combo
Leader in image quality and flight intelligence
Featuring Sony’s new 1-inch 20-megapixel CMOS image sensor,
the EVO II Pro V3 supports up to 6K video with greater dynamic range, improved noise suppression, and higher frame rates.
the EVO II Pro V3 supports up to 6K video with greater dynamic range, improved noise suppression, and higher frame rates.
The adjustable f/2.8-f/11 aperture and maximum ISO of 44000 give photographers enhanced creative control.
6K/30FPS video
Moonlight Algorithm 2.0
Excel in night photography with the EVO II Pro V3’s 1″ 6K CMOS and Autel Robotics’ Moonlight Algorithm 2.0.
4K HDR Video
The EVO II Pro V3 combines the brilliance of 4K clarity with the brightness, color, and detail of HDR.
Previously hidden areas of shadow and sunlight are now filled with clarity and detail.
- Post-production flexibility with 12-bit DNGThe EVO II Pro V3 can shoot 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing for greater flexibility in post-production.
- You can enjoy your favorite moments anytime, without post-processing, as 6K mobile time-lapse video can be exported immediately after recording, and JPEG/RAW formats are also supported.
The EVO II Pro V3 is updated with Autel’s new SkyLink 2.0 video transmission technology.
Fly further with HD video streaming up to 14 km
Get QHD video onscreen within 0.6 miles. Get critical details with 2560 x 1440 resolution for a total of 3,686,400 pixels—about 1.8 times the pixels of an FHD monitor.
Supports tri-band communication and can automatically hop frequencies for maximum anti-interference capability.
*900 MHz is only applicable to FCC countries.
*900 MHz is only applicable to FCC countries.
360° obstacle avoidance
Equipped with 19 sensor groups, including 12 visual sensors, the main camera, ultrasound, IMU, and other sensors enable 3D map creation and real-time route planning.
*See the manual for details on obstacle avoidance and its limitations, which may or may not work in low-light environments, direct sunlight, or through thin tree branches or wires.
Maximum performance Infinite possibilities
- 40 minutes Maximum flight time
- Maximum transmission range (15 km)
- Wind resistance up to 27 mph (12 m/s)
- Maximum speed 45 mph (20 m/s)
Autel Smart Controller SE
Smart Controller SE features a 6.4-inch OLED touchscreen and a cutting-edge octa-core processor for HD image transmission. SkyLink 2.0 transmission technology ensures long-distance operations from up to 15 km away and enhances anti-interference capabilities with tri-band frequency hopping. The customized Android operating system allows for additional flexibility with third-party apps, and an IP43 rating ensures all-weather performance.
- 6.4 Inch OLED Display
- 9.3 mile transmission range Removable battery
Third-party applications
Operating temperature 14°F to 104°F
Takeoff weight 1191 grams Maximum takeoff weight 2000 grams Wheelbase 397 millimeters Size (L*W*H) 230x130x108 mm (folded)
457x558x108 mm (unfolded)Maximum service ceiling altitude 7000 meters Maximum climb speed 8 m/s (ridiculous) Maximum descent speed 4 m/s (ridiculous) Maximum horizontal flight speed 20 m/s (ridiculous) Maximum flight distance (no wind) 25 kilometers Maximum tilt angle 33° (Ridiculous) Maximum angular velocity 120°/s Maximum flight time (no wind) 40 minutes Maximum hover time (no wind) 35 minutes Operating temperature range -10℃ ~ 40℃ Maximum wind resistance 12 m/s (takeoff and landing) Operating frequency 902-928 MHz (FCC only)
2.400-2.4835 GHz
5.725-5.850 GHz (outside Japan)
5.650-5.755 GHz (Japan only)Transmission power 900M
FCC/ISED: ≤31 dBm
2.4G
FCC/ISED: ≤32 dBm
SRRC/CE/MIC/RCM: ≤20 dBm
5.8G (outside Japan); 5.7G (Japan)
FCC/ISED/SRRC/MIC: ≤33 dBm
CE/RCM: ≤14 dBmPrecision in flight Vertical: ±0.1 m (when vision positioning is working normally);
±0.5 m (when GPS is working normally)
Horizontal: ±0.3 m (when vision positioning is working normally);
±1.5 m (when GPS is working normally)Global Navigation Satellite System (GNSS) GPS/Beidou/Glonass/Gallieo Internal storage 8 GB SD storage Maximum support of 256 GB (UHS-3 or Class 10) - Cardan
Cardan 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Swivel: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Swivel: -90° to +90°Maximum control speed (tilt) 300°/s Angular vibration range ±0.005° - Remote control and image transmission
Operating frequency 902-928 MHz (FCC only)
2.400-2.4835 GHz
5.725-5.850 GHz (outside Japan)
5.650-5.755 GHz (Japan only)Transmission power FCC: ≤33 dBm
CE: ≤20 dBm at 2.4G, ≤14 dBm at 5.8G
SRRC: ≤20 dBm at 2.4G, ≤33 dBm at 5.8G/5.7GMaximum transmission distance (no obstacles, no interference) FCC: 15 km
CE: 8 kmDisplay screen 2340×1080 60 fps Battery 1900 mAh Operating time ~2 hours (maximum brightness)
~3 hours (50% brightness)Loading time 90 minutes Internal storage 128GB ROM + expandable storage via micro-SD card - Detection system
Type of detection system Omnidirectional detection system Forward Accurate measuring range: 0.5-18m
Effective detection speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Backward Accurate measuring range: 0.5-16m
Effective detection speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Up Accurate measuring range: 0.5-10m
Effective detection speed: <5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°Down Accurate measuring range: 0.5-10m
Effective detection speed: <5m/s
Viewing angle: horizontal: 100°, vertical: 80°Left and right Accurate measuring range: 0.5-10m
Effective detection speed: <5m/s
Viewing angle: horizontal: 65°, vertical: 50°Operating environment Forward, Back and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upwards:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downwards:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) - Camera

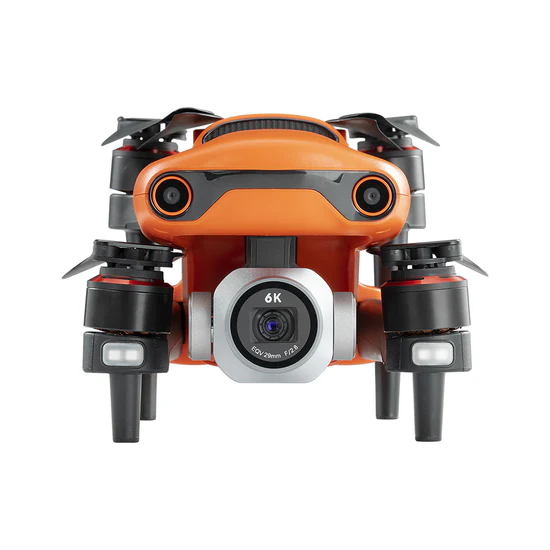

Sensor 1-inch CMOS; 20 million pixels Lens Field of View (FOV): 82°
Equivalent Focal Length: 29mm
Aperture: f/2.8 – f/11
Focusing Range: 0.5m to infinityISO range Video: 100-44000
Photo: 100-6400Shutter speed Photo mode: 1/8000~8s
Others: 1/8000~1/frame rateZoom 1-16x (up to 3x lossless zoom) Photo mode Single Shot/Burst Shot/AEB/Time Lapse/HDR Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)Image format JPG (default) / DNG / JPG+DNG Photo mode 5472 x 3076 P30/P25/P24
3840 x 2160 P60/P50/P48/P30/P25/P24 2720
x 1528 P60/P50/P48/P30/P25/P24
1920 x 1080 P60/P50/P48/P30/P25/P24Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Maximum bit rate 120 Mbps Supported file system FAT32/exFAT - Battery
Ability 7100 mAh Voltage 11.55 V Battery Type 3S lithium polymer battery Energy 82 Wh Weight 365 grams Charging temperature range 5℃ to 45℃ Storage temperature and humidity -10~30℃, 65±20% relative humidity Recommended storage temperature 22-28 ℃ Maximum charging power 93W Loading time 90 minutes - Charger
Input 100-240 V, 50/60 Hz, 1.5 A Production 13.2V ⎓ 5A
5V ⎓ 3A 9V ⎓ 2A 12V ⎓ 1.5AVoltage 13.2 ± 0.1 V Nominal power 66W - Multi-charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃
